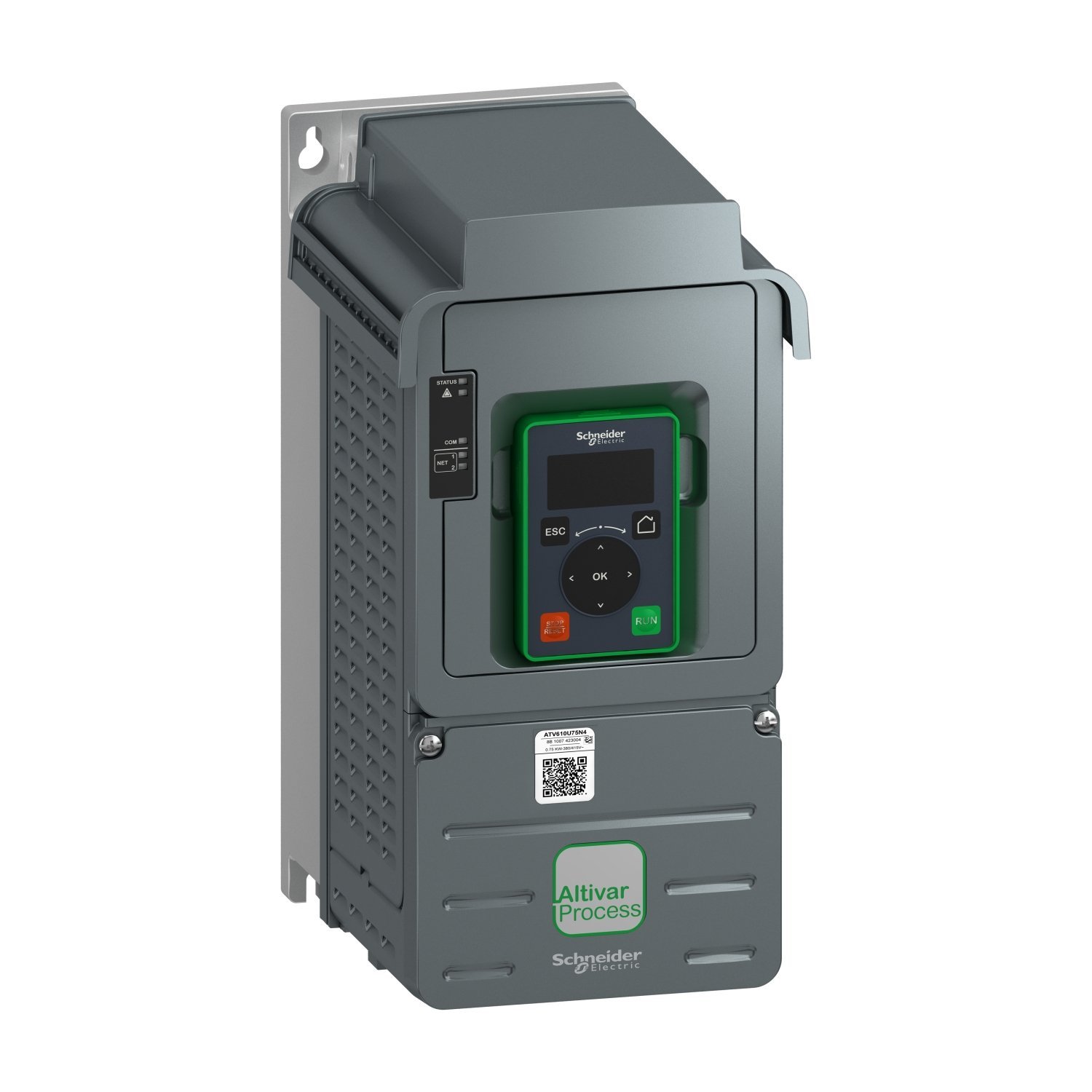

variable speed drive, Easy Altivar 610, 7.5kW, 10hp, 380 to 460V, IP20
Manufacturer: Schneider Electric
Part Number: ATV610U75N4
Key Specifications
| Range of product | Easy Altivar 610 |
| Mounting mode | Cabinet mount |
| IP degree of protection | IP20 |
| Supply frequency | 50…60 Hz +/-5 % |
| Network number of phases | 3 phases |
| [Us] rated supply voltage | 380…460 V – 15…10 % |
| Motor power kW | 7.5 kW for normal duty | 5.5 kW for heavy duty |
| Motor power hp | 10 hp for normal duty | 7.5 hp for heavy duty |
| Line current | 14.7 A at 380 V (normal duty) | 12.8 A at 460 V (normal duty) | 11.3 A at 380 V (heavy duty) | 10.2 A at 460 V (heavy duty) |
| Apparent power | 10.2 kVA at 460 V (normal duty) | 8.1 kVA at 460 V (heavy duty) |
| Continuous output current | 15.8 A at 4 kHz for normal duty | 12.7 A at 4 kHz for heavy duty |
| Maximum transient current | 17.4 A during 60 s (normal duty) | 19.1 A during 60 s (heavy duty) |
| Output frequency | 0.1…500 Hz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 2…12 kHz adjustable |
| Output voltage | <= power supply voltage |
| Frequency resolution | Display unit: 0.1 Hz | Analog input: 0.012/50 Hz |
| Net weight | 4.575 kg |
| Minimum switching current | Relay output R1, R2, R3: 5 mA at 24 V DC |
| Maximum switching current | Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC | Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC | Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC | Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC |
| Power dissipation in W | 216 W(forced convection) at 380 V, switching frequency 4 kHz | 42 W(natural convection) at 380 V, switching frequency 4 kHz |
| Package 1 Weight | 5.920 kg |
| Package 2 Weight | 47.420 kg |
