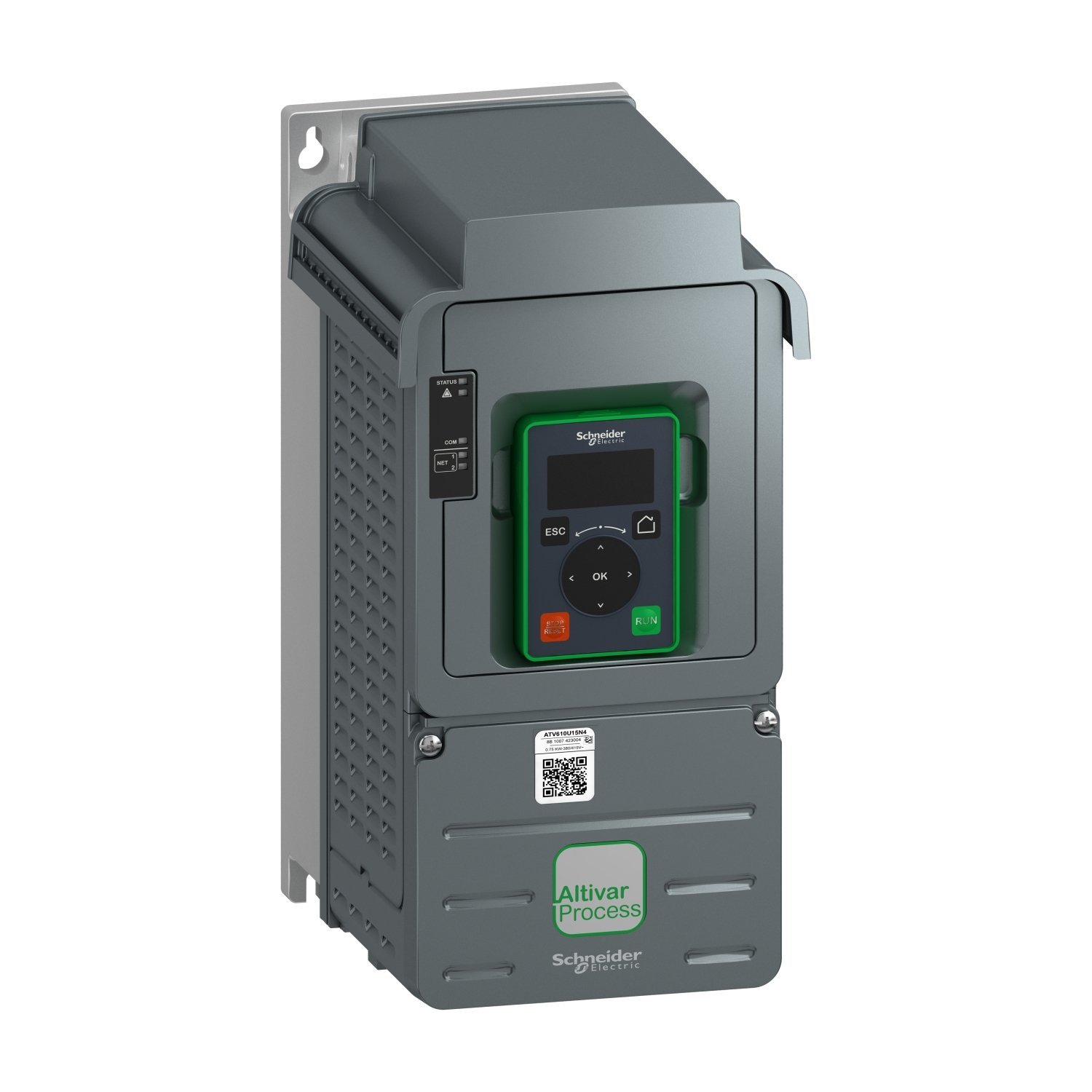

variable speed drive, Easy Altivar 610, 1.5kW, 2hp, 380 to 460V, IP20
Manufacturer: Schneider Electric
Part Number: ATV610U15N4
Key Specifications
| Range of product | Easy Altivar 610 |
| Mounting mode | Cabinet mount |
| IP degree of protection | IP20 |
| Supply frequency | 50…60 Hz +/-5 % |
| Network number of phases | 3 phases |
| [Us] rated supply voltage | 380…460 V – 15…10 % |
| Motor power kW | 1.5 kW for normal duty | 0.75 kW for heavy duty |
| Motor power hp | 2 hp for normal duty | 1 hp for heavy duty |
| Line current | 5.7 A at 380 V (normal duty) | 4.8 A at 460 V (normal duty) | 3.1 A at 380 V (heavy duty) | 2.6 A at 460 V (heavy duty) |
| Apparent power | 3.8 kVA at 460 V (normal duty) | 2.1 kVA at 460 V (heavy duty) |
| Continuous output current | 4 A at 4 kHz for normal duty | 2.2 A at 4 kHz for heavy duty |
| Maximum transient current | 4.4 A during 60 s (normal duty) | 3.3 A during 60 s (heavy duty) |
| Output frequency | 0.1…500 Hz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 2…12 kHz adjustable |
| Output voltage | <= power supply voltage |
| Frequency resolution | Display unit: 0.1 Hz | Analog input: 0.012/50 Hz |
| Net weight | 3.135 kg |
| Minimum switching current | Relay output R1, R2, R3: 5 mA at 24 V DC |
| Maximum switching current | Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC | Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC | Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC | Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC |
| Power dissipation in W | 40 W(forced convection) at 380 V, switching frequency 4 kHz | 25 W(natural convection) at 380 V, switching frequency 4 kHz |
| Package 1 Weight | 5.7 kg |
