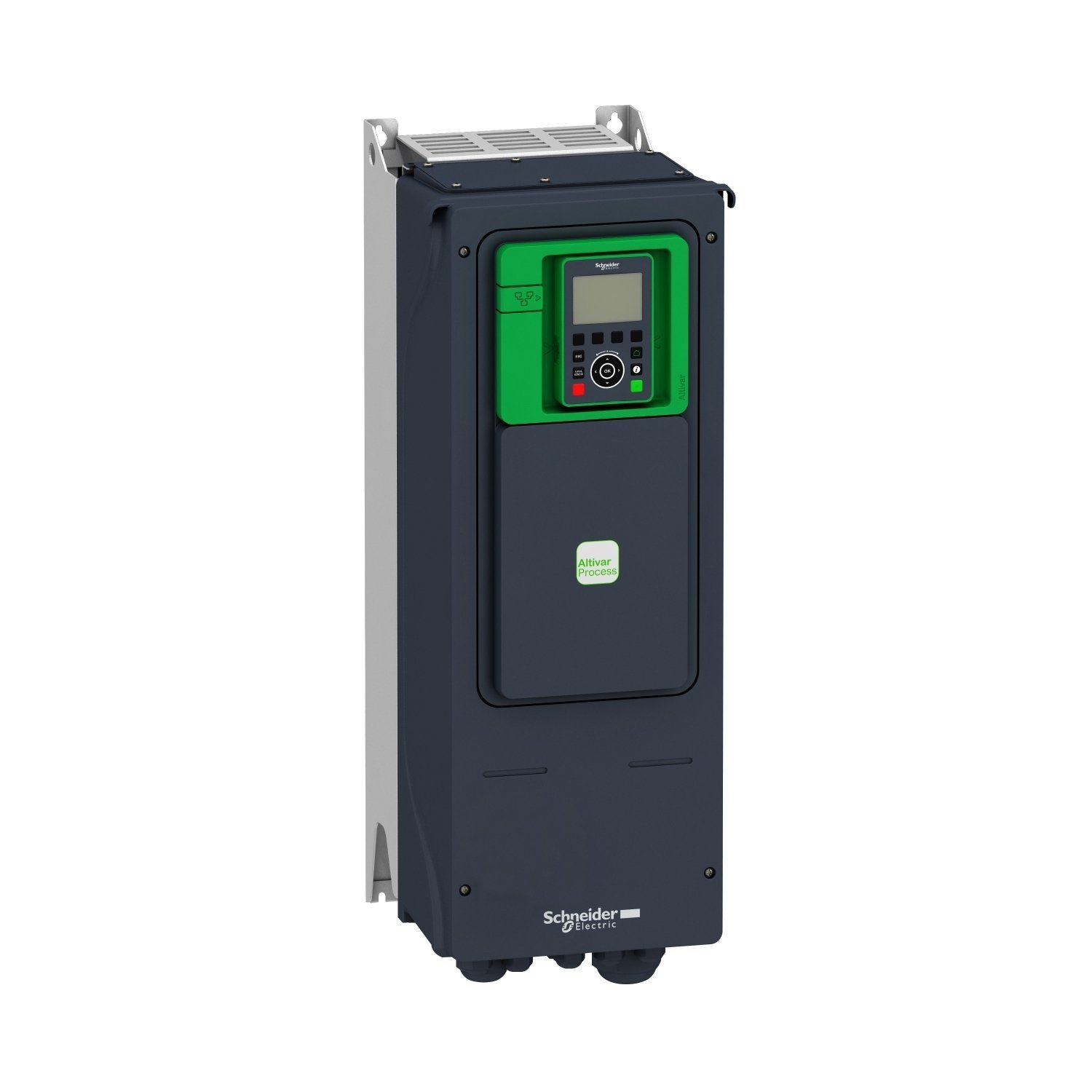

Variable speed drive ATV650 IP55 11KW 400V/480V
Manufacturer: Schneider Electric
Part Number: ATV650D11N4SW
EAN: 3606480756085
Key Specifications
| Range of product | Altivar Process ATV600 |
| Mounting mode | Wall mount |
| [Us] rated supply voltage | 380…480 V |
| Relative symmetric mains voltage tolerance | 10 % |
| Relative symmetric network frequency tolerance | 5 % |
| nominal output current | 23.5 A |
| IP degree of protection | IP54 conforming to IEC 60529 | IP55 conforming to IEC 61800-5-1 |
| Supply frequency | 50…60 Hz – 5…5 % |
| Motor power kW | 7.5 kW (heavy duty) | 11 kW (normal duty) |
| Motor power hp | 10 hp heavy duty | 15 hp normal duty |
| Line current | 19.8 A at 380 V (normal duty) | 17 A at 480 V (normal duty) | 14.1 A at 380 V (heavy duty) | 12.5 A at 480 V (heavy duty) |
| Continuous output current | 16.5 A at 2.5 kHz for heavy duty | 23.5 A at 4 kHz for normal duty |
| Speed drive output frequency | 0.1…500 Hz |
| Maximum switching current | Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC | Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC | Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC | Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC |
| Minimum switching current | Relay output R1, R2, R3: 5 mA at 24 V DC |
| Network number of phases | 3 phases |
| Output voltage | <= power supply voltage |
| Permissible temporary current boost | 1.5 x In during 60 s (heavy duty) | 1.1 x In during 60 s (normal duty) |
| Frequency resolution | Analog input: 0.012/50 Hz | Display unit: 0.1 Hz |
| Power range | 250…500 kW at 480…500 V 3 phases | 7…11 kW at 380…440 V 3 phases |
| Enclosure mounting | Wall mounted |
| Maximum output frequency | 500 kHz |
| Switching frequency | 2…8 kHz adjustable | 2…12 kHz adjustable |
| Nominal switching frequency | 4 kHz |
| Maximum input current | 19.8 A |
| Maximum output voltage | 480.0 V |
| Apparent power | 10.4 kVA at 480 V (heavy duty) | 14.1 kVA at 480 V (normal duty) |
| Maximum transient current | 24.8 A during 60 s (heavy duty) | 25.9 A during 60 s (normal duty) |
| Network frequency | 50…60 Hz |
| Base load current at high overload | 16.5 A |
| Base load current at low overload | 23.5 A |
| Power dissipation in W | 5700 W, switching frequency 2.5 kHz (heavy duty) |
| Net weight | 13.7 kg |
| Overvoltage category | III |
