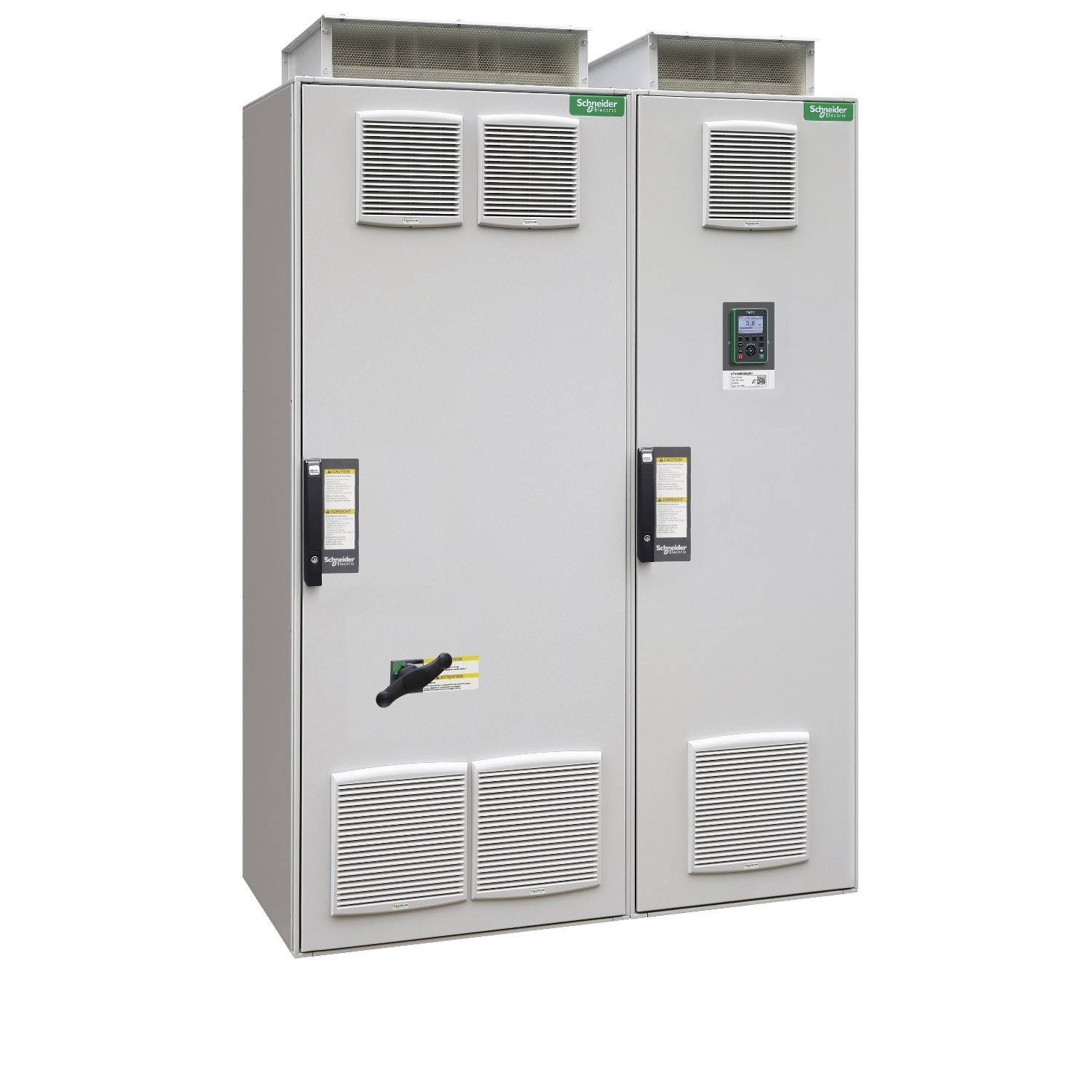

Variable speed drive, Altivar Process ATV600, ATV660 Compact Drive System, 900/710 kW, 480 V, CE, IP23
Manufacturer: Schneider Electric
Part Number: ATV660C80T4X1
Key Specifications
| Range of product | Altivar Process ATV600 |
| Colour of enclosure | Light grey (RAL 7035) |
| IP degree of protection | IP23 conforming to IEC 61800-5-1 |
| Supply frequency | 50/60 Hz +/-5 % |
| [Us] rated supply voltage | 480 V +/- 10 % |
| Network number of phases | 3 phases |
| Output voltage | <= power supply voltage |
| Permissible temporary current boost | 1.1 x In during 60 s (normal duty) | 1.5 x In during 60 s (heavy duty) |
| Speed drive output frequency | 0.1…500 Hz |
| Continuous output current | 1420 A at 2.5 kHz for normal duty | 1140 A at 2.5 kHz for heavy duty |
| Power dissipation in W | 20600 W, total (normal duty) | 15080 W, total (heavy duty) | 2300 W, control part (normal duty) | 1580 W, control part (heavy duty) |
| Motor power kW | 900 kW for normal duty | 710 kW for heavy duty |
| Frequency resolution | Display unit: 0.1 Hz | Analog input: 0.012/50 Hz |
| Maximum switching current | Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC | Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC | Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC | Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC |
| Minimum switching current | Relay output R1, R2, R3: 5 mA at 24 V DC |
| Switching frequency | 2…8 kHz adjustable with derating factor |
| Nominal switching frequency | 2.5 kHz |
| Line current | 1257 A at 480 V (normal duty) | 997 A at 480 V (heavy duty) |
| Apparent power | 1045 kVA at 480 V (normal duty) | 828 kVA at 480 V (heavy duty) |
| Maximum transient current | 1562 A during 60 s per 10 min (normal duty) | 1710 A during 60 s per 10 min (heavy duty) |
| Net weight | 1100 kg |
| Overvoltage category | III |
| Package 1 Weight | 1150 kg |
