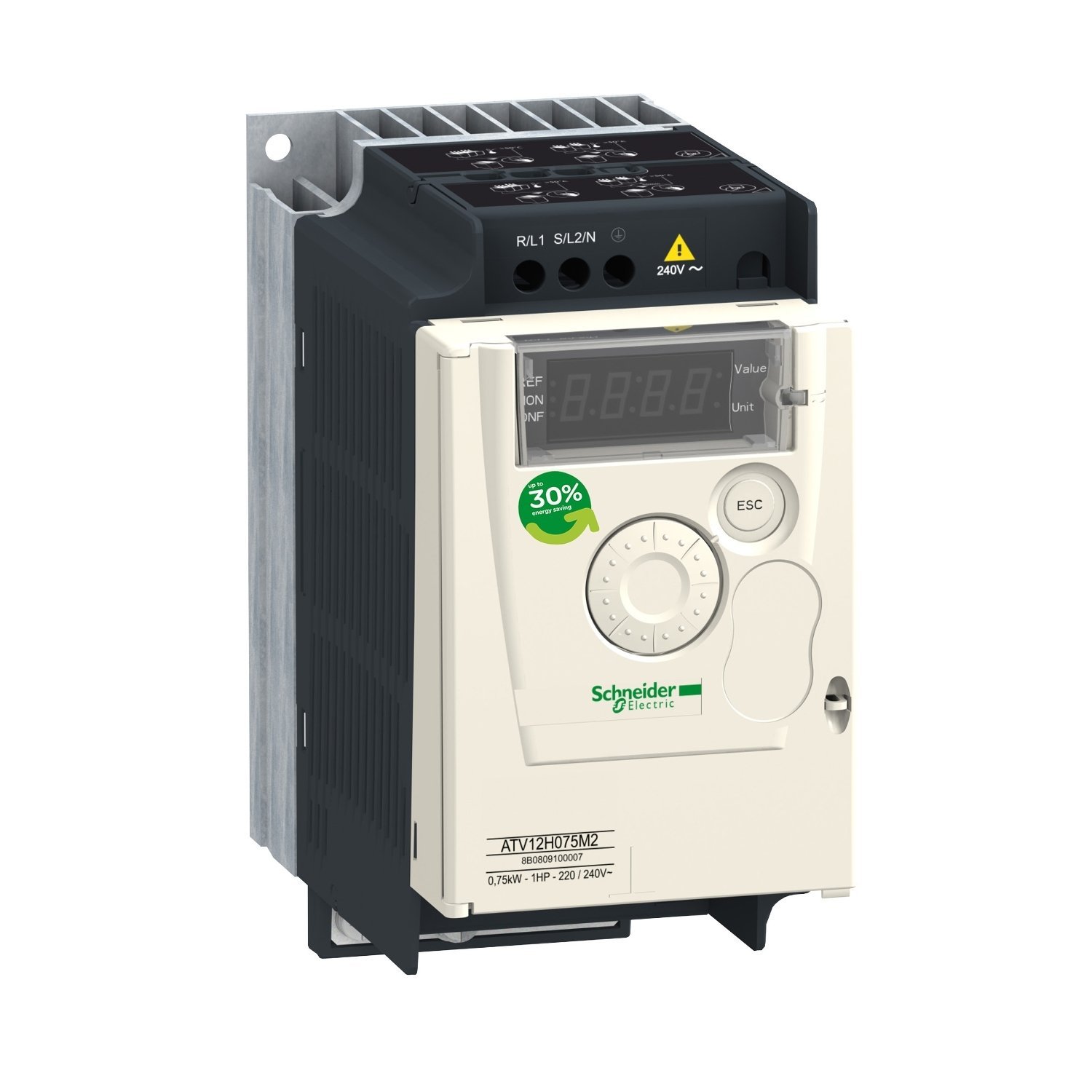

variable speed drive ATV12 – 0.75kW -1hp -200..240V -1ph -w heat sink-lot of 14
Manufacturer: Schneider Electric
Part Number: ATV12H075M2TQ
EAN: 3606480076596
Key Specifications
| Range of product | Altivar 12 |
| Mounting mode | Cabinet mount |
| Supply frequency | 50/60 Hz +/- 5 % |
| [Us] rated supply voltage | 200…240 V – 15…10 % |
| nominal output current | 4.2 A |
| Motor power kW | 0.75 kW |
| Motor power hp | 1 hp |
| IP degree of protection | IP20 |
| Continuous output current | 4.2 A at 4 kHz |
| Speed drive output frequency | 0.5…400 Hz |
| Frequency resolution | Analog input: converter A/D, 10 bits | Display unit: 0.1 Hz |
| Maximum output frequency | 4 kHz |
| Switching frequency | 2…16 kHz adjustable | 4…16 kHz with derating factor |
| Nominal switching frequency | 4 kHz |
| Line current | 10.2 A at 100 V (heavy duty) | 8.5 A at 120 V (heavy duty) |
| Maximum input current | 8.5 A |
| Maximum output voltage | 240 V |
| Apparent power | 2.0 kVA at 240 V (heavy duty) |
| Maximum transient current | 6.3 A during 60 s (heavy duty) | 6.9 A during 2 s (heavy duty) |
| Network frequency | 50…60 Hz |
| Relative symmetric network frequency tolerance | 5 % |
| Base load current at high overload | 4.2 A |
| Power dissipation in W | Natural: 44.0 W |
| Net weight | 0.8 kg |
| Overvoltage category | Class III |
| Package 1 Weight | 868.000 g |
| Package 2 Weight | 14.096 kg |
| Package 3 Weight | 96.904 kg |
