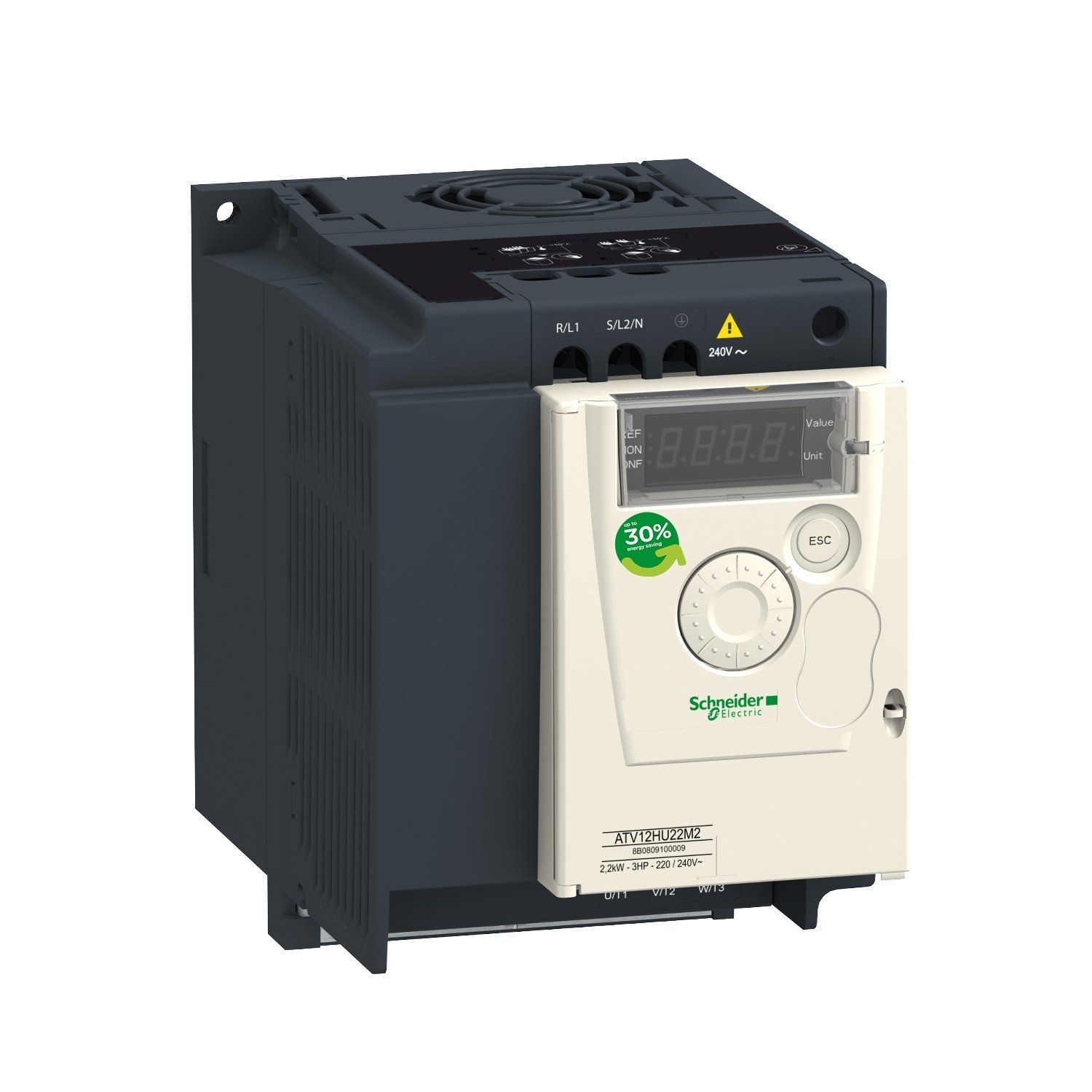

variable speed drive ATV12 -2.2kW -3hp -200..240V – 1ph – w heat sink – lot of 7
Manufacturer: Schneider Electric
Part Number: ATV12HU22M2TQ
EAN: 3606480076619
Key Specifications
| Range of product | Altivar 12 |
| Mounting mode | Cabinet mount |
| Supply frequency | 50/60 Hz +/- 5 % |
| [Us] rated supply voltage | 200…240 V – 15…10 % |
| nominal output current | 10 A |
| Motor power kW | 2.2 kW |
| Motor power hp | 3 hp |
| IP degree of protection | IP20 |
| Continuous output current | 10 A at 4 kHz |
| Speed drive output frequency | 0.5…400 Hz |
| Frequency resolution | Analog input: converter A/D, 10 bits | Display unit: 0.1 Hz |
| Maximum output frequency | 4 kHz |
| Switching frequency | 2…16 kHz adjustable | 4…16 kHz with derating factor |
| Nominal switching frequency | 4 kHz |
| Line current | 24.0 A at 100 V (heavy duty) | 20.2 A at 120 V (heavy duty) |
| Maximum input current | 20.2 A |
| Maximum output voltage | 240 V |
| Apparent power | 4.8 kVA at 240 V (heavy duty) |
| Maximum transient current | 15.0 A during 60 s (heavy duty) | 16.5 A during 2 s (heavy duty) |
| Network frequency | 50…60 Hz |
| Relative symmetric network frequency tolerance | 5 % |
| Base load current at high overload | 10.0 A |
| Power dissipation in W | Forced cooling: 93.0 W |
| Net weight | 1.4 kg |
| Overvoltage category | Class III |
| Package 1 Weight | 1.446 kg |
| Package 2 Weight | 12.208 kg |
| Package 3 Weight | 85.876 kg |
