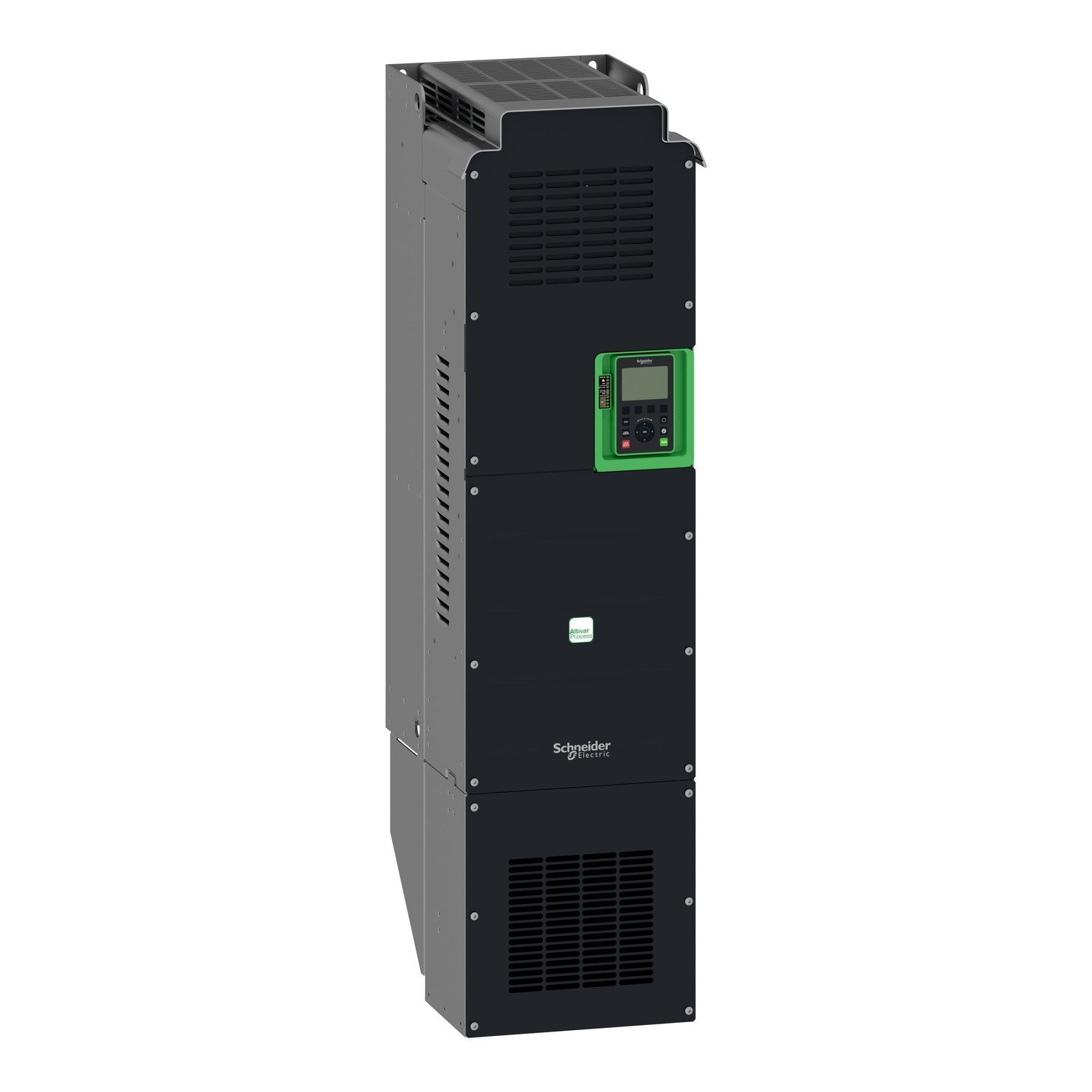

Variable Speed Drive, Altivar Process ATV600, ATV630, 55kW, 75hp, 200 to 240V, IP00 [TAA, BABA]

Name: Variable Speed Drive, Altivar Process ATV600, ATV630, 55kW, 75hp, 200 to 240V, IP00 [TAA, BABA]
Brand: Schneider Electric
SKU: ATV630D55M3US

Get a Quote

Add to wishlist

SKU: ATV630D55M3US Category: Altivar Process 630 Variable Frequency Drives VFD Tag: ATV630D55M3US|Altivar Process 630 Variable Frequency Drives VFD Brand: Schneider Electric

Description

Variable Speed Drive, Altivar Process ATV600, ATV630, 55kW, 75hp, 200 to 240V, IP00 [TAA, BABA]

Manufacturer: Schneider Electric

Part Number: ATV630D55M3US

Key Specifications

Range of Product	Altivar Process ATV600
Mounting Mode	Wall mount
[Us] rated supply voltage	200…240 V
Relative symmetric mains voltage tolerance	10 %
Relative symmetric network frequency tolerance	5 %
nominal output current	211.0 A
IP degree of protection	IP00IEC 61800-5-1 \| IP00IEC 60529 \| IP21 with kit VW3A9704)IEC 61800-5-1 \| IP21 with kit VW3A9704)IEC 60529
Supply frequency	50…60 Hz – 5…5 %
Motor power kW	55 kW normal duty) \| 45 kW heavy duty)
Maximum Horse Power Rating	75 hp normal duty \| 60 hp heavy duty
Line current	189 A 200 V normal duty) \| 161 A 240 V normal duty) \| 156 A 200 V heavy duty) \| 134 A 240 V heavy duty)
Continuous output current	211 A 2.5 kHz normal duty \| 176 A 2.5 kHz heavy duty
Speed drive output frequency	0.1…500 Hz
Maximum switching current	Relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC \| Relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC \| Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC \| Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC
Minimum switching current	Relay output R1, R2, R3 5 mA 24 V DC
Phase	3 phase
Output voltage	<= power supply voltage
Permissible temporary current boost	1.1 x In 60 s normal duty) \| 1.5 x In 60 s heavy duty)
Frequency resolution	Display unit 0.1 Hz \| Analog input 0.012/50 Hz
Power range	55…100 kW 200…240 V 3 phase
Enclosure mounting	Wall mounted
Maximum output frequency	500 kHz
Switching frequency	2.5…8 kHz with derating factor \| 2…8 kHz adjustable
Nominal switching frequency	2.5 kHz
Maximum Input Current per Phase	189.0 A
Maximum output voltage	240.0 V
Apparent power	61.1 kVA 240 V normal duty) \| 50 kVA 240 V heavy duty)
Maximum transient current	232.1 A 60 s normal duty) \| 264 A 60 s heavy duty)
Network Frequency	50-60 Hz
Base load current at high overload	176.0 A
Base load current at low overload	211.0 A
Net Weight	185.2 lb(US) (84 kg)
Overvoltage category	III
Package weight(Lbs)	227.076 lb(US) (103.000 kg)
