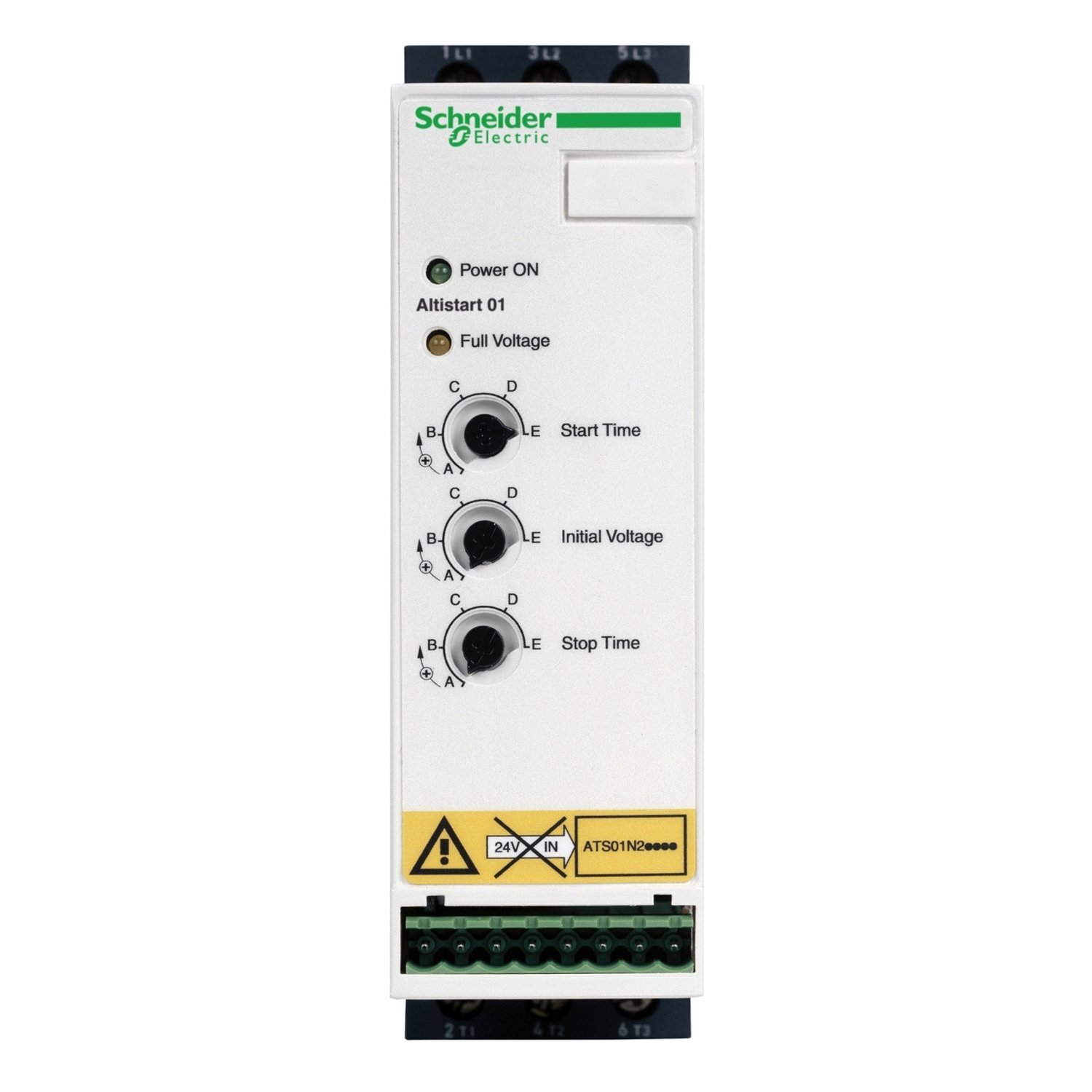

soft starter for asynchronous motor – ATS01 – 32 A – 200..240V – 7.5 KW
Manufacturer: Schneider Electric
Part Number: ATS01N232LU
EAN: 3389110667332
Key Specifications
| Range of product | Altistart 01 |
| Network number of phases | 3 phases |
| [Us] rated supply voltage | 200…240 V – 10…10 % |
| Motor power kW | 7.5 kW, 3 phases at 200…240 V |
| Motor power hp | 10 hp, 3 phases at 200…240 V |
| Current consumption | 160 A at nominal load |
| Power dissipation in W | 4.5 W at full load and at end of starting | 324.5 W in transient state |
| Supply voltage limits | 180…264 V |
| Supply frequency | 50…60 Hz – 5…5 % |
| Network frequency | 47.5…63 Hz |
| Output voltage | <= power supply voltage |
| [Uc] control circuit voltage | Built into the starter |
| Discrete input voltage | 24…40 V |
| Discrete output current | 2 A DC-13 | 3 A AC-15 |
| Discrete output voltage | 24 V (voltage limits: 6…30 V) open collector logic |
| Minimum switching current | 10 mA at 6 V DC for relay outputs |
| Maximum switching current | Relay outputs: 2 A at 250 V AC cos phi = 0.5 and L/R = 20 ms inductive load | Relay outputs: 2 A at 30 V DC cos phi = 0.5 and L/R = 20 ms inductive load |
| Net weight | 0.56 kg |
| Power range | 7…11 kW at 200…240 V 3 phases |
| IP degree of protection | IP20 |
| Package 1 Weight | 645.000 g |
| Package 2 Weight | 9.500 kg |
