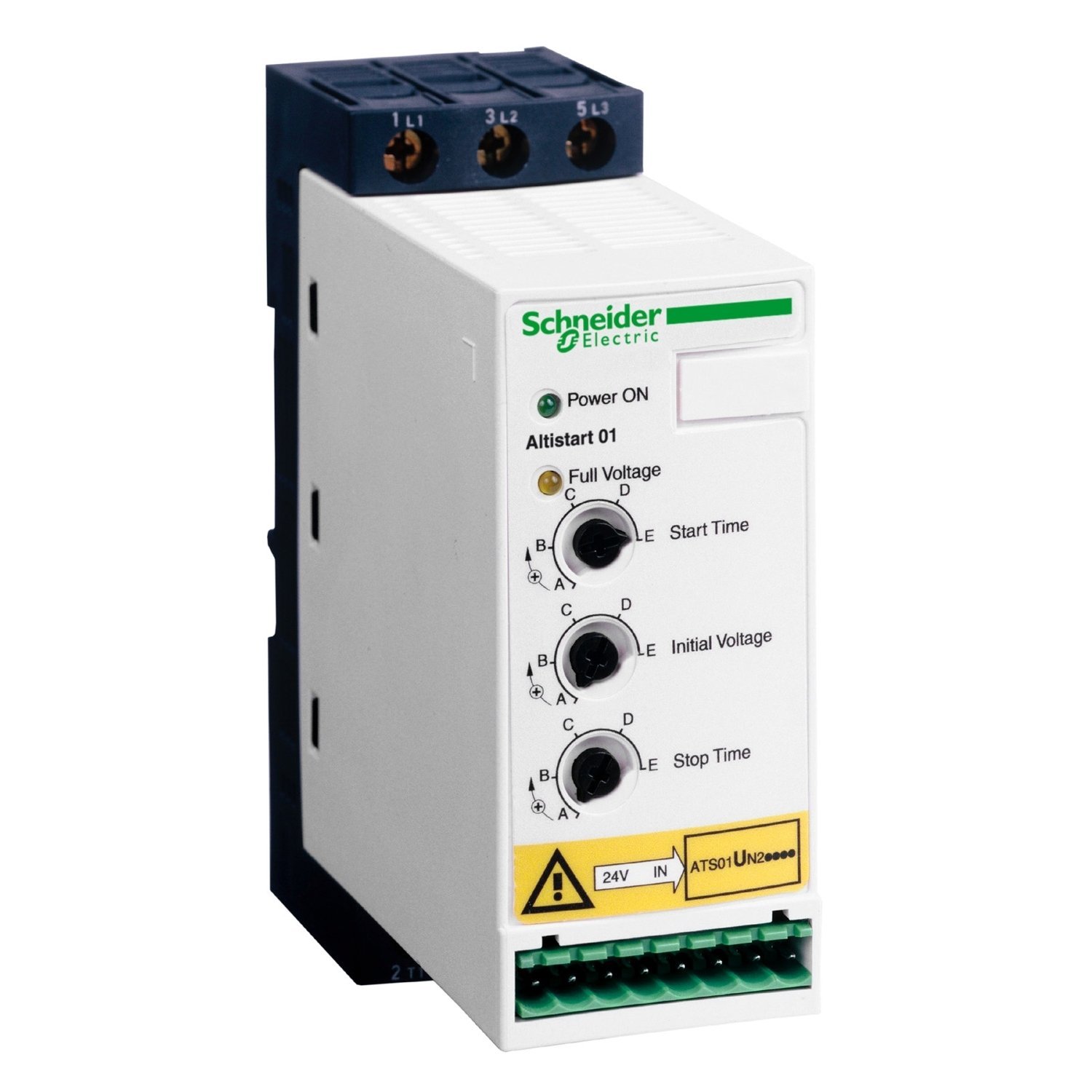

soft starter in IP54 metal enclosure – ATS01 – 9 A – 400 V – 4 KW

Manufacturer: Telemecanique

Part Number: ATS01N209QE41

Range of product	Altistart 01
Network number of phases	3 phases
[Us] rated supply voltage	400 V – 10…10 %
Supply voltage limits	342…456 V
Supply frequency	50…60 Hz – 5…5 %
Network frequency	47.5…63 Hz
Motor power kW	4 kW, 3 phases at 380…415 V
Output voltage	<= power supply voltage
[Uc] control circuit voltage	Built into the starter
Current consumption	45 A at nominal load
Power dissipation in W	4 W at full load and at end of starting \| 94 W in transient state
Discrete input voltage	24…40 V
Discrete output current	2 A DC-13 \| 3 A AC-15
Discrete output voltage	24 V (voltage limits: 6…30 V) open collector logic
Minimum switching current	10 mA at 6 V DC for relay outputs
Maximum switching current	Relay outputs: 2 A at 250 V AC cos phi = 0.5 and L/R = 20 ms inductive load \| Relay outputs: 2 A at 30 V DC cos phi = 0.5 and L/R = 20 ms inductive load
IP degree of protection	IP20
