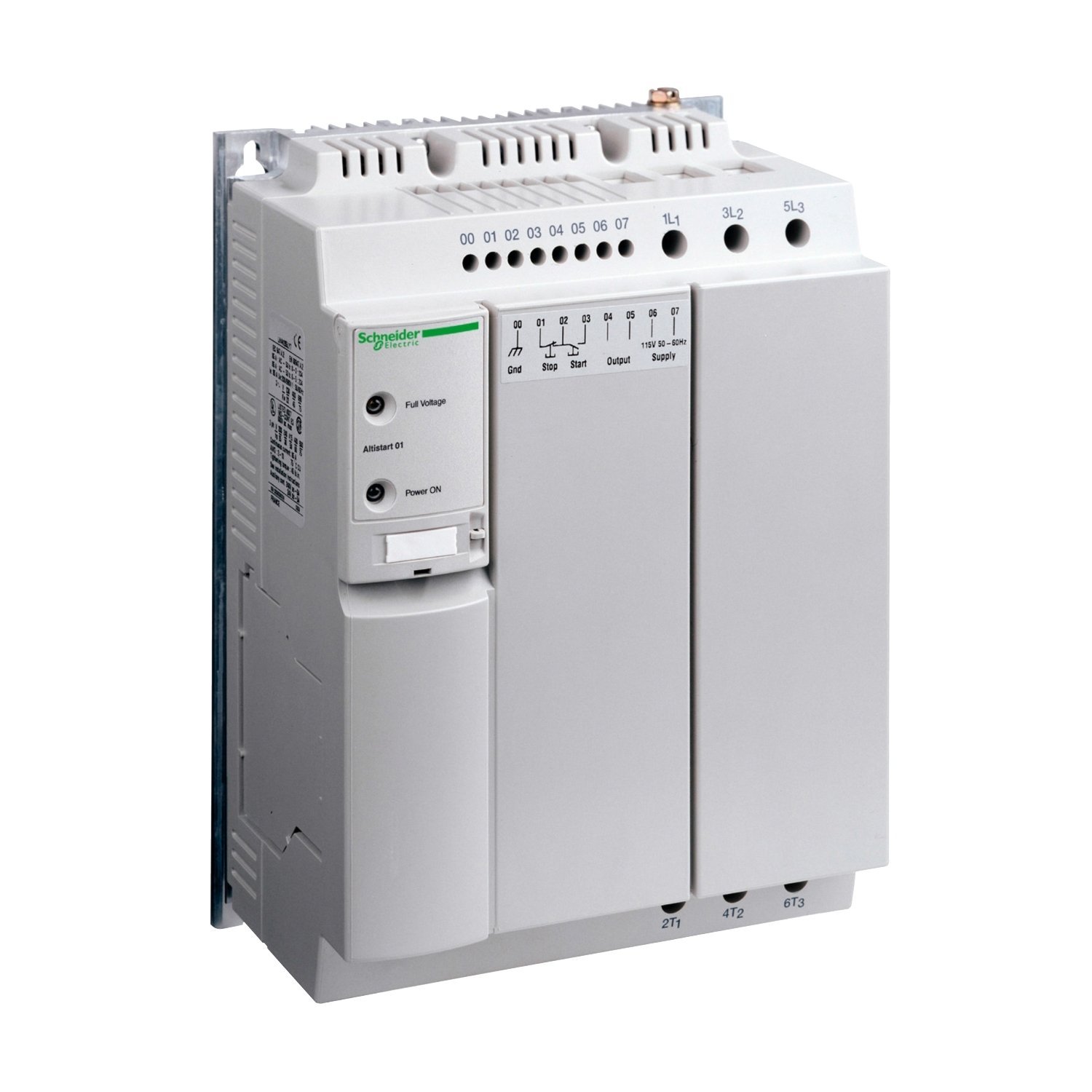

soft starter for asynchronous motor, Altistart 01, ATS01, 85A, 400V, 45kW
Manufacturer: Telemecanique
Part Number: ATS01N285Q
EAN: 3389110673395
Key Specifications
| Range of product | Altistart 01 |
| Network number of phases | 3 phases |
| [Us] rated supply voltage | 400 V – 15…10 % |
| Motor power kW | 45 kW, 3 phases at 400 V |
| Motor power hp | 50 hp, 3 phases at 400 V |
| Current consumption | 255 A at nominal load |
| Power dissipation in W | 23 W at full load and at end of starting | 514 W in transient state |
| Supply voltage limits | 340…440 V |
| Supply frequency | 50…60 Hz – 5…5 % |
| Network frequency | 47.5…63 Hz |
| Output voltage | <= power supply voltage |
| [Uc] control circuit voltage | Built into the starter |
| Discrete input voltage | 24 V |
| Discrete output current | 2 A DC-13 | 3 A AC-15 |
| Discrete output voltage | 24 V DCrelay outputs | 250 V ACrelay outputs |
| Minimum switching current | 10 mA at 17 V DC for relay outputs |
| Net weight | 3.8 kg |
| IP degree of protection | On front panel: IP20 |
| Package 1 Weight | 4.355 kg |
