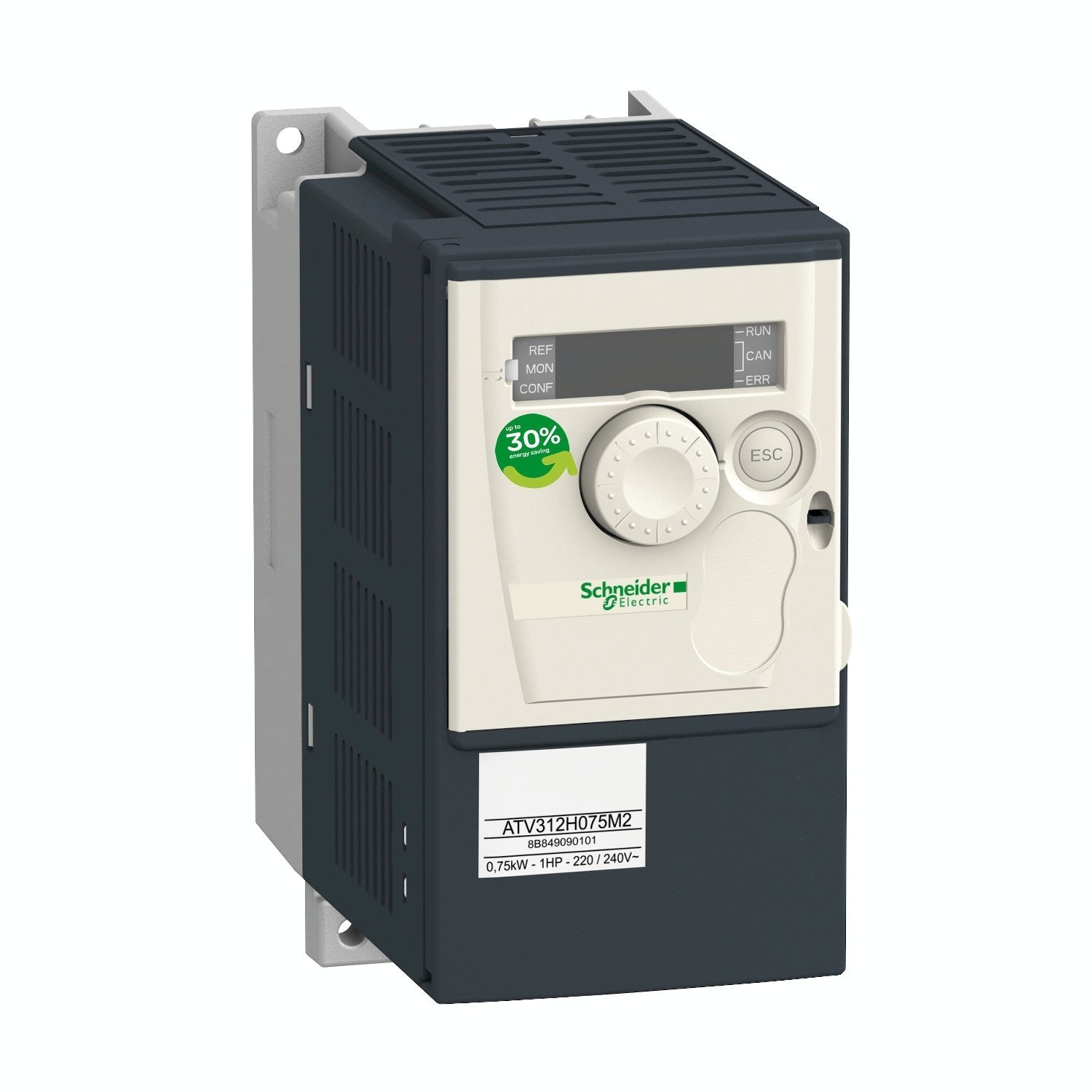

VARIATEUR DE VITESSE ATV3 12 0,75 KW 240V

Manufacturer: Schneider Electric

Part Number: ATV312H075M2320

Motor power kW	0.75 kW
Motor power hp	1 hp
Supply frequency	50…60 Hz – 5…5 %
Network number of phases	Single phase
Line current	8.9 A at 200 V, Isc = 1 kA \| 7.5 A at 240 V
Apparent power	1.8 kVA
Maximum transient current	7.2 A for 60 s
Power dissipation in W	60 W at nominal load
IP degree of protection	IP20 on upper part without cover plate \| IP21 on connection terminals \| IP31 on upper part \| IP41 on upper part
Range of product	Altivar 312
[Us] rated supply voltage	200…240 V – 15…10 %
Supply voltage limits	170…264 V
Continuous output current	4.8 A at 4 kHz
Output frequency	0…500 Hz
Switching frequency	2…16 kHz adjustable
Output voltage	<= power supply voltage
Minimum switching current	R1-R2 10 mA at 5 V DC
Maximum switching current	R1-R2: 2 A at 250 V AC inductive load, cos phi = 0.4 and L/R = 7 ms \| R1-R2: 2 A at 30 V DC inductive load, cos phi = 0.4 and L/R = 7 ms \| R1-R2: 5 A at 250 V AC resistive load, cos phi = 1 and L/R = 0 ms \| R1-R2: 5 A at 30 V DC resistive load, cos phi = 1 and L/R = 0 ms
Frequency resolution	Analog input: 0.1…100 Hz \| Display unit: 0.1 Hz
Nominal switching frequency	4 kHz
Network frequency	47.5…63 Hz
Net weight	1.5 kg
Package 1 Weight	1.53 kg

Weight	1,5 kg
