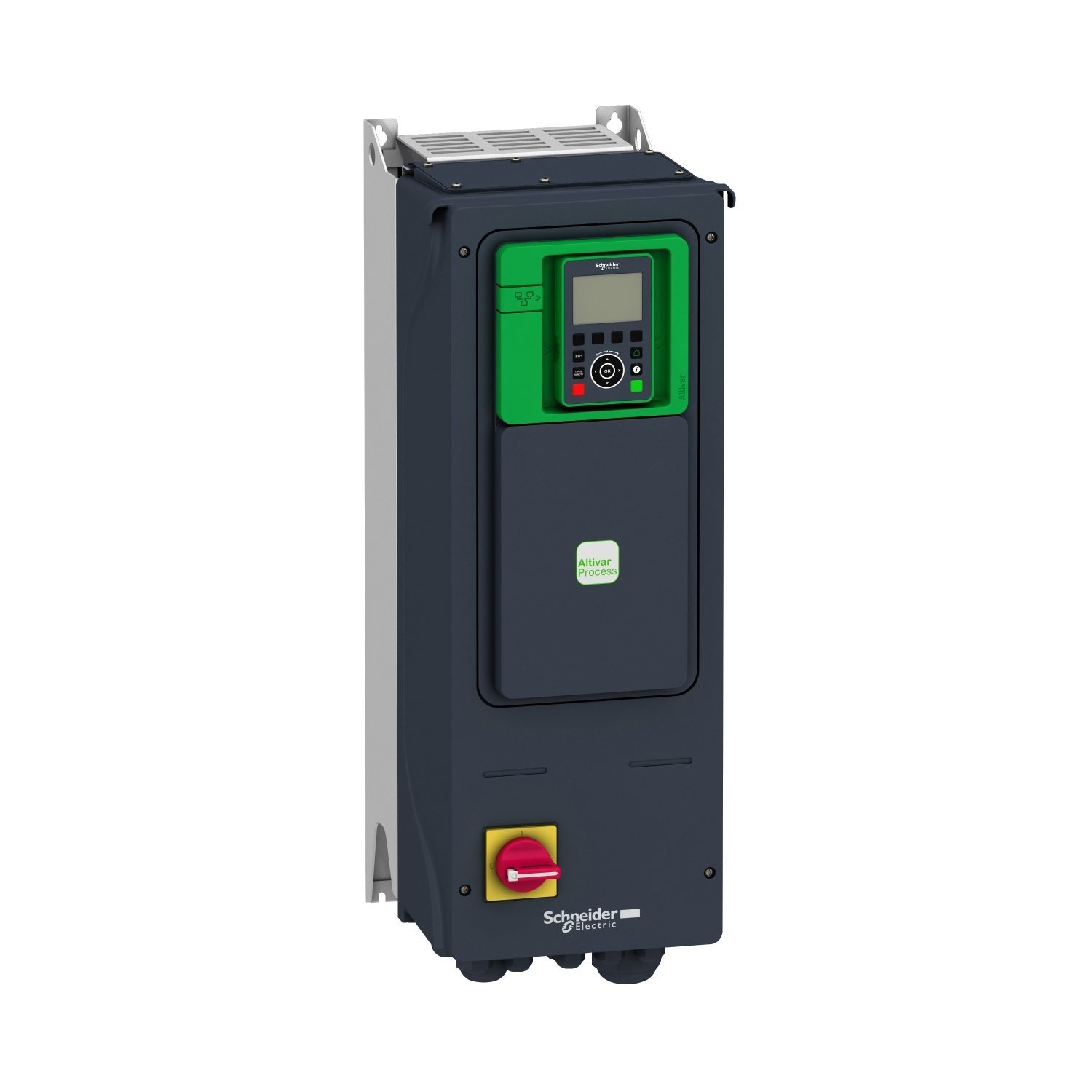

variable speed drive, ATV950, 0,75kW, 400/480V, w braking unit/switch, IP55
Manufacturer: Schneider Electric
Part Number: ATV950U07N4E
EAN: 3606480883903
Key Specifications
| Range of product | Altivar Process ATV900 |
| Network number of phases | 3 phases |
| Mounting mode | Wall mount |
| Continuous output current | 2.2 A at 4 kHz for normal duty | 1.5 A at 4 kHz for heavy duty |
| [Us] rated supply voltage | 380…480 V |
| Relative symmetric mains voltage tolerance | 10 % |
| Relative symmetric network frequency tolerance | 5 % |
| nominal output current | 2.2 A |
| Motor power kW | 0.75 kW for normal duty | 0.37 kW for heavy duty |
| IP degree of protection | IP55 |
| Maximum switching current | Relay output R1 on resistive load, cos phi = 1: 3 A at 250 V AC | Relay output R1 on resistive load, cos phi = 1: 3 A at 30 V DC | Relay output R1 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC | Relay output R1 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC | Relay output R2, R3 on resistive load, cos phi = 1: 5 A at 250 V AC | Relay output R2, R3 on resistive load, cos phi = 1: 5 A at 30 V DC | Relay output R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC | Relay output R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC |
| Minimum switching current | Relay output R1, R2, R3: 5 mA at 24 V DC |
| Maximum output frequency | 599 Hz |
| Switching frequency | 2…16 kHz adjustable | 4…16 kHz with derating factor |
| Nominal switching frequency | 4 kHz |
| Line current | 1.5 A at 380 V (normal duty) | 0.9 A at 380 V (heavy duty) | 1.3 A at 480 V (normal duty) | 0.8 A at 480 V (heavy duty) |
| Maximum input current | 1.5 A |
| Maximum output voltage | 480.0 V |
| Apparent power | 1.1 kVA at 480 V (normal duty) | 0.7 kVA at 480 V (heavy duty) |
| Maximum transient current | 2.6 A during 60 s (normal duty) | 2.3 A during 60 s (heavy duty) |
| Network frequency | 50…60 Hz |
| Base load current at high overload | 1.5 A |
| Base load current at low overload | 2.2 A |
| Net weight | 10.5 kg |
| Overvoltage category | III |
| Package 1 Weight | 12.9 kg |
