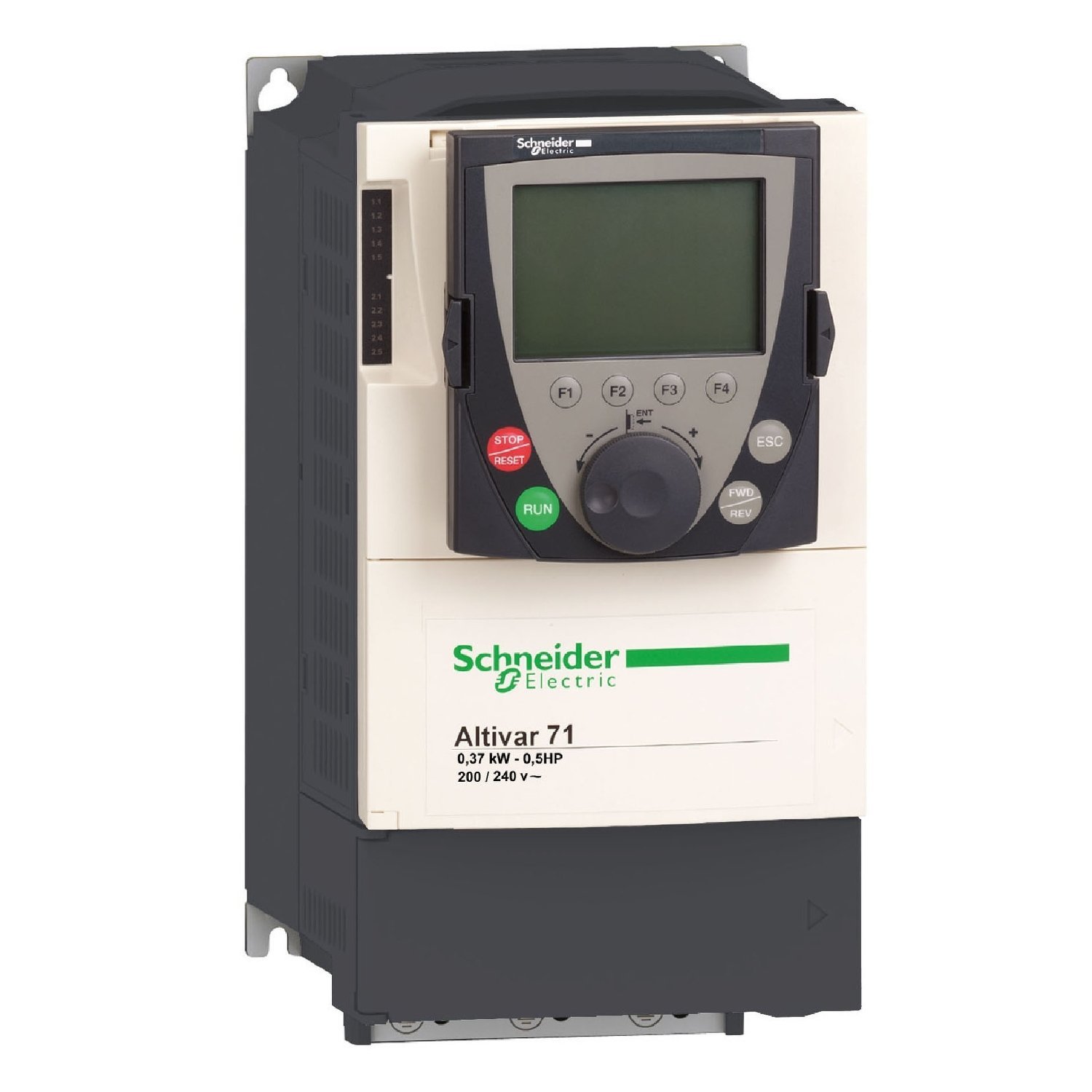

variable speed drive ATV71 – 0.37kW-0.5HP – 240V – EMC filter-graphic terminal
Manufacturer: Telemecanique
Part Number: ATV71H075M3383
Key Specifications
| Range of Product | Altivar 71 |
| Motor power kW | 0.37 kW, single phase 200…240 V | 0.75 kW, 3 phase 200…240 V |
| Maximum Horse Power Rating | 1 hp, 3 phase 200…240 V | 0.5 hp, single phase 200…240 V |
| power supply voltage | 200…240 V – 15…10 % |
| Phase | 3 phase | Single phase |
| Line current | 5.3 A 240 V 3 phase 0.75 kW / 1 hp | 5.8 A 240 V single phase 0.37 kW / 0.5 hp | 6.1 A 200 V 3 phase 0.75 kW / 1 hp | 6.9 A 200 V single phase 0.37 kW / 0.5 hp |
| Apparent power | 1.4 kVA 240 V single phase 0.37 kW / 0.5 hp | 2.2 kVA 240 V 3 phase 0.75 kW / 1 hp |
| Nominal output current | 3 A 4 kHz 230 V single phase 0.37 kW / 0.5 hp | 4.8 A 4 kHz 230 V 3 phase 0.75 kW / 1 hp |
| Maximum transient current | 4.5 A 60 s single phase 0.37 kW / 0.5 hp | 4.9 A 2 s single phase 0.37 kW / 0.5 hp | 7.2 A 60 s 3 phase 0.75 kW / 1 hp | 7.9 A 2 s 3 phase 0.75 kW / 1 hp |
| Output frequency | 0.1…599 Hz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 1…16 kHz adjustable | 4…16 kHz with derating factor |
| power supply voltage limits | 170…264 V |
| power supply frequency | 50…60 Hz – 5…5 % |
| power supply frequency limits | 47.5…63 Hz |
| Output voltage | <= power supply voltage |
| type of cable for mounting in an enclosure | With a NEMA Type1 kit 3 UL 508 cable 104 °F (40 °C), copper 75 °C / PVC | With an IP21 or an IP31 kit 3 IEC cable 104 °F (40 °C), copper 70 °C / PVC | Without mounting kit 1 IEC cable 113 °F (45 °C), copper 70 °C / PVC | Without mounting kit 1 IEC cable 113 °F (45 °C), copper 90 °C / XLPE/EPR |
| Minimum switching current | 3 mA 24 V DC configurable relay logic |
| Maximum switching current | R1, R2 2 A 250 V AC inductive, cos phi = 0.4 | R1, R2 2 A 30 V DC inductive, cos phi = 0.4 | R1, R2 5 A 250 V AC resistive, cos phi = 1 | R1, R2 5 A 30 V DC resistive, cos phi = 1 |
| Frequency resolution | Analog input 0.024/50 Hz | Display unit 0.1 Hz |
| Net Weight | 6.6 lb(US) (3 kg) |
| IP degree of protection | IP20 on upper part without blanking plate on cover EN/IEC 60529 | IP20 on upper part without blanking plate on cover EN/IEC 61800-5-1 | IP21 EN/IEC 60529 | IP21 EN/IEC 61800-5-1 | IP41 on upper part EN/IEC 60529 | IP41 on upper part EN/IEC 61800-5-1 | IP54 on lower part EN/IEC 60529 | IP54 on lower part EN/IEC 61800-5-1 |
| Package weight(Lbs) | 9.780 lb(US) (4.436 kg) |
