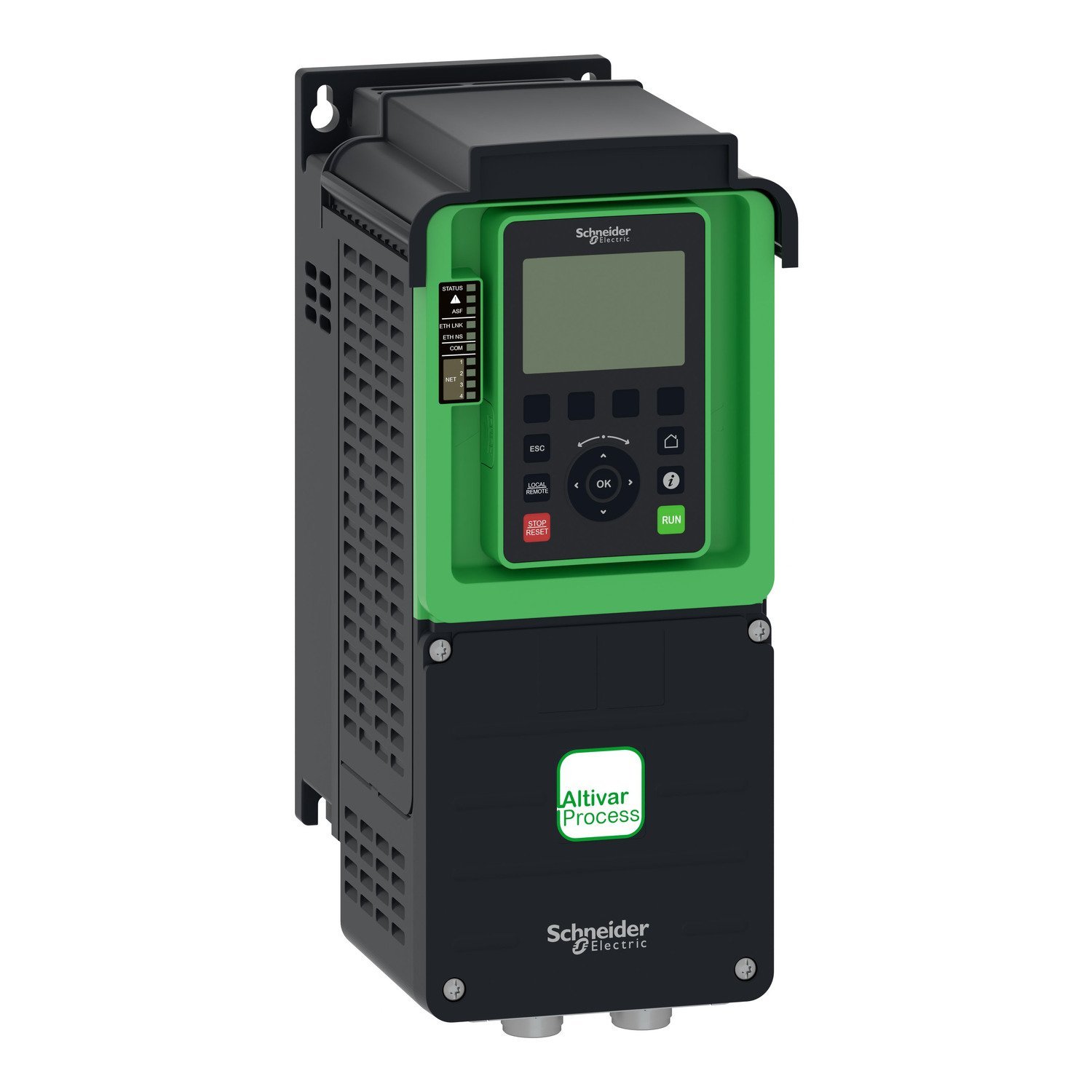

variable speed drive ATV630 – 4kW/5HP – 200…240V – IP21/UL type 1
Manufacturer: Schneider Electric
Part Number: ATV630U40M3
EAN: 3606480761652
Key Specifications
| Range of product | Altivar Process ATV600 |
| Mounting mode | Wall mount |
| [Us] rated supply voltage | 200…240 V |
| Relative symmetric mains voltage tolerance | 10 % |
| Relative symmetric network frequency tolerance | 5 % |
| nominal output current | 18.7 A |
| IP degree of protection | IP21 conforming to IEC 61800-5-1 | IP21 conforming to IEC 60529 |
| Supply frequency | 50…60 Hz – 5…5 % |
| Motor power kW | 4 kW (normal duty) | 3 kW (heavy duty) |
| Motor power hp | 5 hp normal duty | 4 hp heavy duty |
| Line current | 15.1 A at 200 V (normal duty) | 12.9 A at 240 V (normal duty) | 11.7 A at 200 V (heavy duty) | 10.2 A at 240 V (heavy duty) |
| Continuous output current | 18.7 A at 4 kHz for normal duty | 13.7 A at 4 kHz for heavy duty |
| Speed drive output frequency | 0.1…500 Hz |
| Maximum switching current | Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC | Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC | Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC | Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC |
| Minimum switching current | Relay output R1, R2, R3: 5 mA at 24 V DC |
| Network number of phases | 3 phases |
| Output voltage | <= power supply voltage |
| Permissible temporary current boost | 1.1 x In during 60 s (normal duty) | 1.5 x In during 60 s (heavy duty) |
| Frequency resolution | Display unit: 0.1 Hz | Analog input: 0.012/50 Hz |
| Power range | 4…6 kW at 200…240 V 3 phases |
| Enclosure mounting | Wall mounted |
| Maximum output frequency | 500 kHz |
| Switching frequency | 2…12 kHz adjustable | 4…12 kHz with derating factor |
| Nominal switching frequency | 4 kHz |
| Maximum input current | 15.1 A |
| Maximum output voltage | 240.0 V |
| Apparent power | 5.4 kVA at 240 V (normal duty) | 4.2 kVA at 240 V (heavy duty) |
| Maximum transient current | 20.6 A during 60 s (normal duty) | 20.6 A during 60 s (heavy duty) |
| Network frequency | 50…60 Hz |
| Base load current at high overload | 13.7 A |
| Base load current at low overload | 18.7 A |
| Power dissipation in W | Natural convection: 38 W at 200 V, switching frequency 4 kHz | Forced convection: 141 W at 200 V, switching frequency 4 kHz |
| Net weight | 4.6 kg |
| Overvoltage category | III |
| Package 1 Weight | 6.014 kg |
| Package 2 Weight | 49.084 kg |
