The Altivar Machine ATV320 drive is a variable speed drive for three-phase asynchronous and synchronous motors from 0.18 to 15 kW. The Altivar Machine ATV320 drive is robust, simple to commission, and easy to integrate into different machine layouts and cabinets. It can also be integrated into commonly used automation architectures. Altivar Machine ATV320 variable speed drives are particularly suitable for applications involving simple industrial machines. Furthermore, Altivar Machine ATV320 embeds many practical functions so that advanced application requirements can be covered. Altivar Machine ATV320 is designed to improve machine performance and increase machine availability while reducing the total machine cost.
- EMC filter integrated
-
Effective control of asynchronous and permanent magnet motors -
Complete integration into any system architecture (Ethernet, CANopen, Profibus, etc.) -
Compact and book format for integration in a variety of different cabinet types -
Integrated safety function for compliance with functional safety standards -
Enhanced resistance to polluted atmospheres -
PID regulator -
Robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards to extend machine availability in harsh environmental conditions -
Simple and advanced machine requirements covered for: packaging; material Handling; textile; material working; mechanical actuators; hoisting
Specifications
| Manufacturer: | Schneider Electric |
| Series: | Altivar Machine ATV320 |

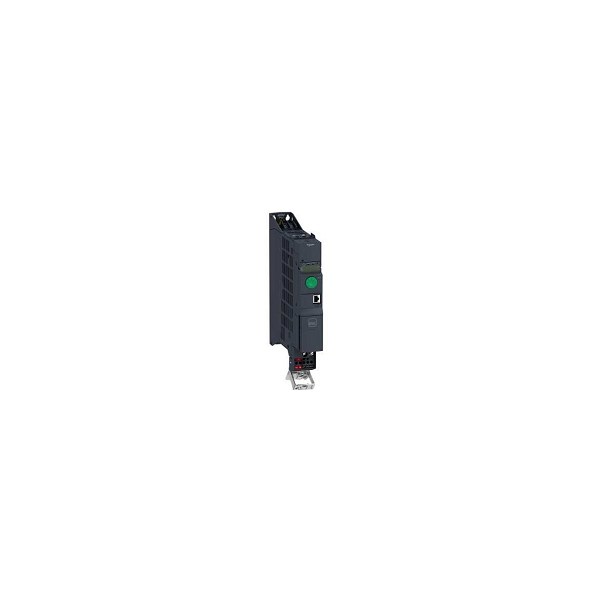

| Model: | ATV320U30N4B |
| Application: | general purpose |
| Capacity, kW: | 3 |
| Current, А: | 7.1 |
| Main power supply, V: | 380-500 |
| Phase: | 3 |
| Output frequency, Hz: | 0,1-599 |
| Enclosure: | IP20 |
| EMC filter: | Class C2 EMC filter integrated |
| Braking unit: | DC injection |
| Analog input: | 3 |
| Digital input: | 7 |
| Analog output: | 1 |
| Digital output: | 3 |
| Relay output: | 2 |
| RS485 (Modbus RTU): | Modbus, CANopen |
| PID: | Adjustable PID regulator |
| V/f control mode: | – |
| Vector control with feedback: | – |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10……+50 |
| Storage temperature, °С: | -25……+70 |
| Dimensions (W x H x D), mm: | 60x325x245 |
| Weight, kg: | 3 |
