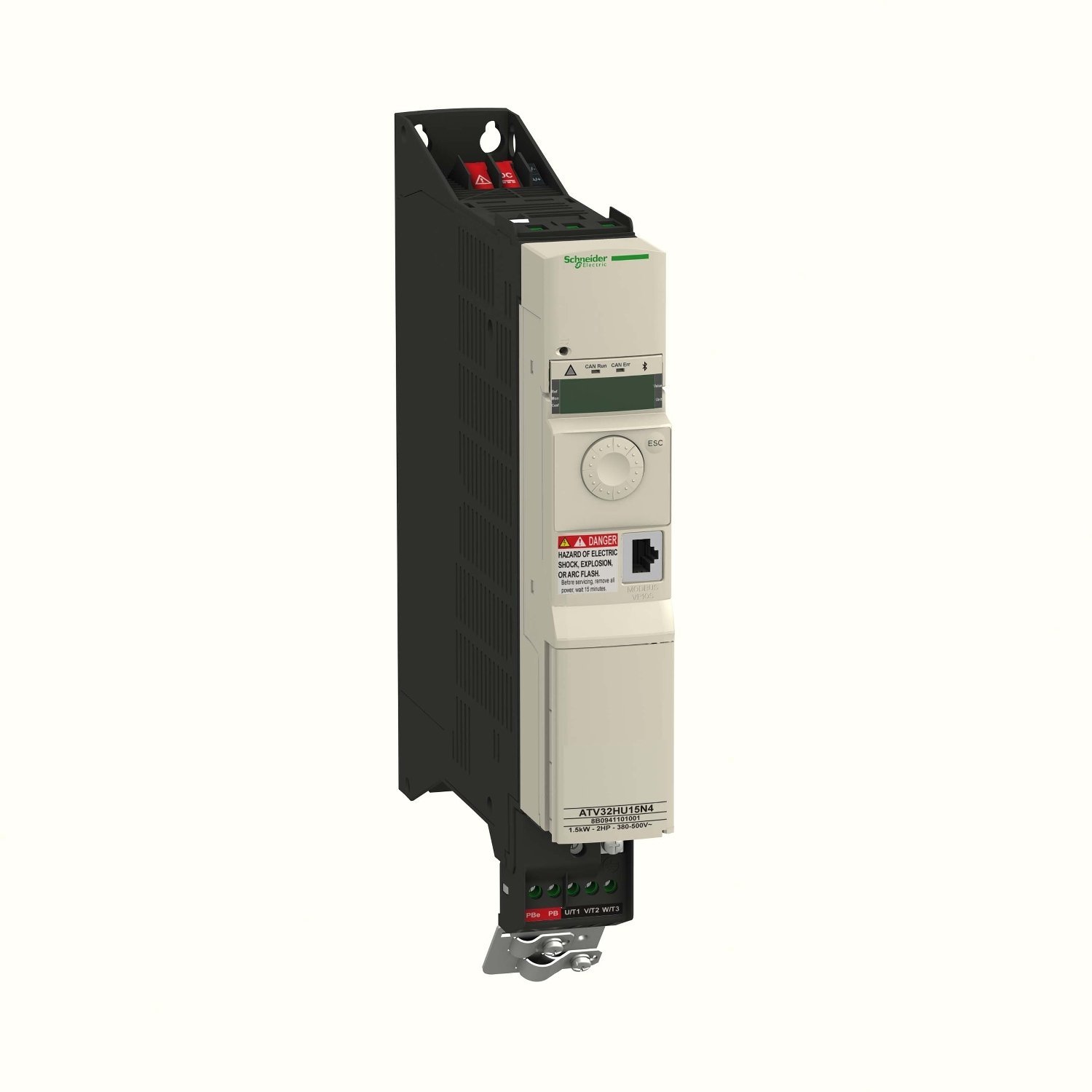

variable speed drive ATV32 – 0.75 kw – 400 V – 3 phase – with heat sink
Manufacturer: Schneider Electric
Part Number: ATV32H075N4
EAN: 3606480299803
Key Specifications
| Range of product | Altivar 32 |
| Network number of phases | 3 phases |
| [Us] rated supply voltage | 380…500 V – 15…10 % |
| Supply voltage limits | 323…550 V |
| Supply frequency | 50…60 Hz – 5…5 % |
| Network frequency | 47.5…63 Hz |
| Motor power kW | 0.75 kW at 380…480 V |
| Motor power hp | 1 hp at 380…480 V |
| Line current | 2.7 A for 500 V 3 phases 0.75 kW / 1 hp | 3.6 A for 380 V 3 phases 0.75 kW / 1 hp |
| Apparent power | 2.3 kVA at 500 V 3 phases 0.75 kW / 1 hp |
| Nominal output current | 2.3 A at 4 kHz 500 V 0.75 kW / 1 hp |
| Maximum transient current | 3.5 A for 60 s 0.75 kW / 1 hp |
| Output frequency | 0.0005…0.599 kHz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 2…16 kHz adjustable |
| Output voltage | <= power supply voltage |
| Minimum switching current | 5 mA at 24 V DC for configurable relay logic |
| Maximum switching current | R1: 3 A at 250 V AC resistive load, cos phi = 1 | R1: 4 A at 30 V DC resistive load, cos phi = 1 | R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4 | R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4 | R2: 5 A at 250 V AC resistive load, cos phi = 1 | R2: 5 A at 30 V DC resistive load, cos phi = 1 |
| Net weight | 2.5 kg |
| IP degree of protection | IP20 conforming to EN/IEC 61800-5-1 |
