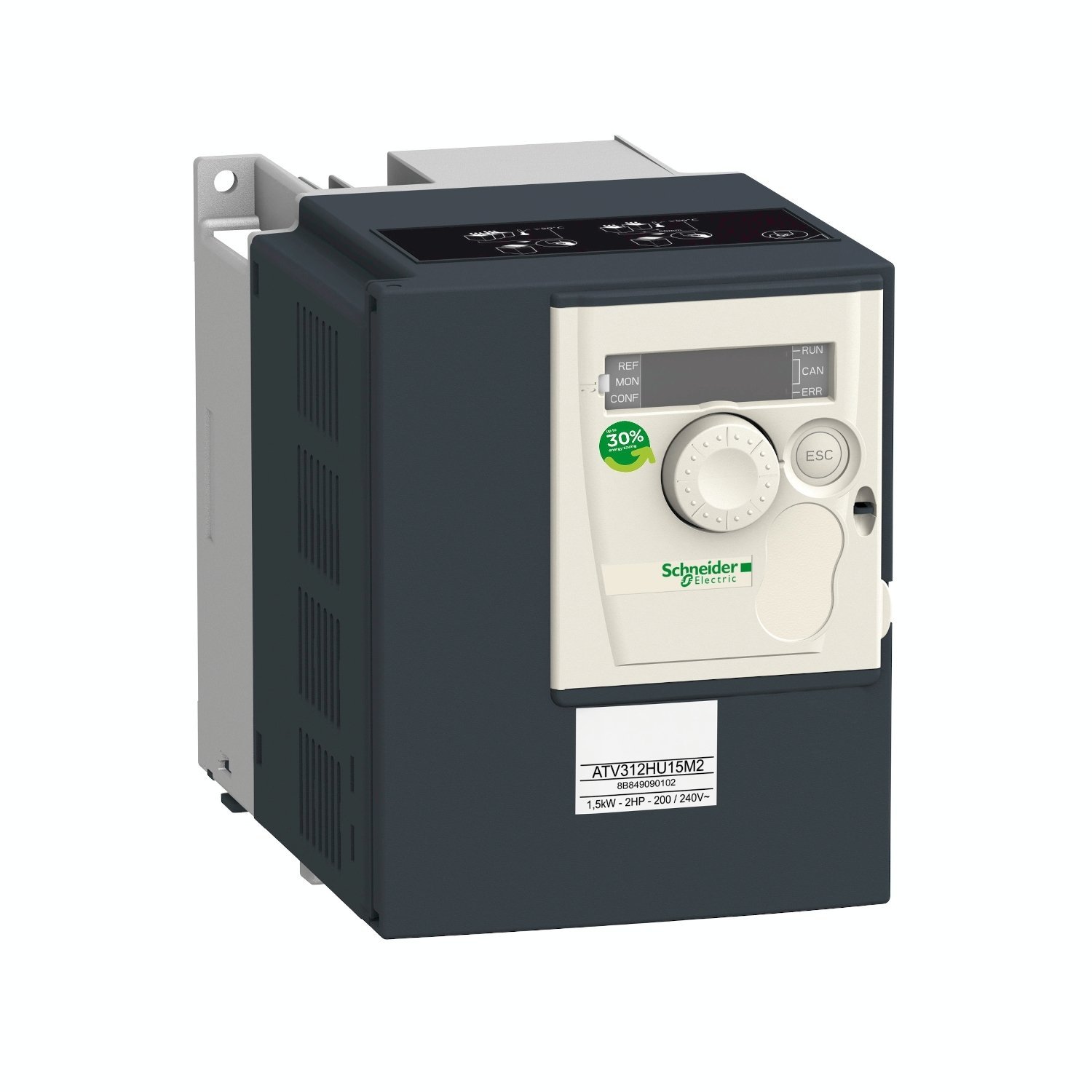

variable speed drive ATV312 – 1.5kW – 3.2kVA – 90W – 200..240 V- 1-phase supply
Manufacturer: Schneider Electric
Part Number: ATV312HU15M2
EAN: 3606480077562
Key Specifications
| Motor power kW | 1.5 kW |
| Motor power hp | 2 hp |
| Supply frequency | 50…60 Hz – 5…5 % |
| Network number of phases | Single phase |
| Line current | 15.8 A at 200 V, Isc = 1 kA | 13.3 A at 240 V |
| Apparent power | 3.2 kVA |
| Maximum transient current | 12 A for 60 s |
| Power dissipation in W | 90 W at nominal load |
| IP degree of protection | IP20 on upper part without cover plate | IP21 on connection terminals | IP31 on upper part | IP41 on upper part |
| Range of product | Altivar 312 |
| [Us] rated supply voltage | 200…240 V – 15…10 % |
| Supply voltage limits | 170…264 V |
| Continuous output current | 8 A at 4 kHz |
| Output frequency | 0…500 Hz |
| Switching frequency | 2…16 kHz adjustable |
| Output voltage | <= power supply voltage |
| Minimum switching current | R1-R2 10 mA at 5 V DC |
| Maximum switching current | R1-R2: 2 A at 250 V AC inductive load, cos phi = 0.4 and L/R = 7 ms | R1-R2: 2 A at 30 V DC inductive load, cos phi = 0.4 and L/R = 7 ms | R1-R2: 5 A at 250 V AC resistive load, cos phi = 1 and L/R = 0 ms | R1-R2: 5 A at 30 V DC resistive load, cos phi = 1 and L/R = 0 ms |
| Frequency resolution | Analog input: 0.1…100 Hz | Display unit: 0.1 Hz |
| Nominal switching frequency | 4 kHz |
| Network frequency | 47.5…63 Hz |
| Net weight | 1.8 kg |
| Package 1 Weight | 1.967 kg |
| Package 2 Weight | 63 kg |
