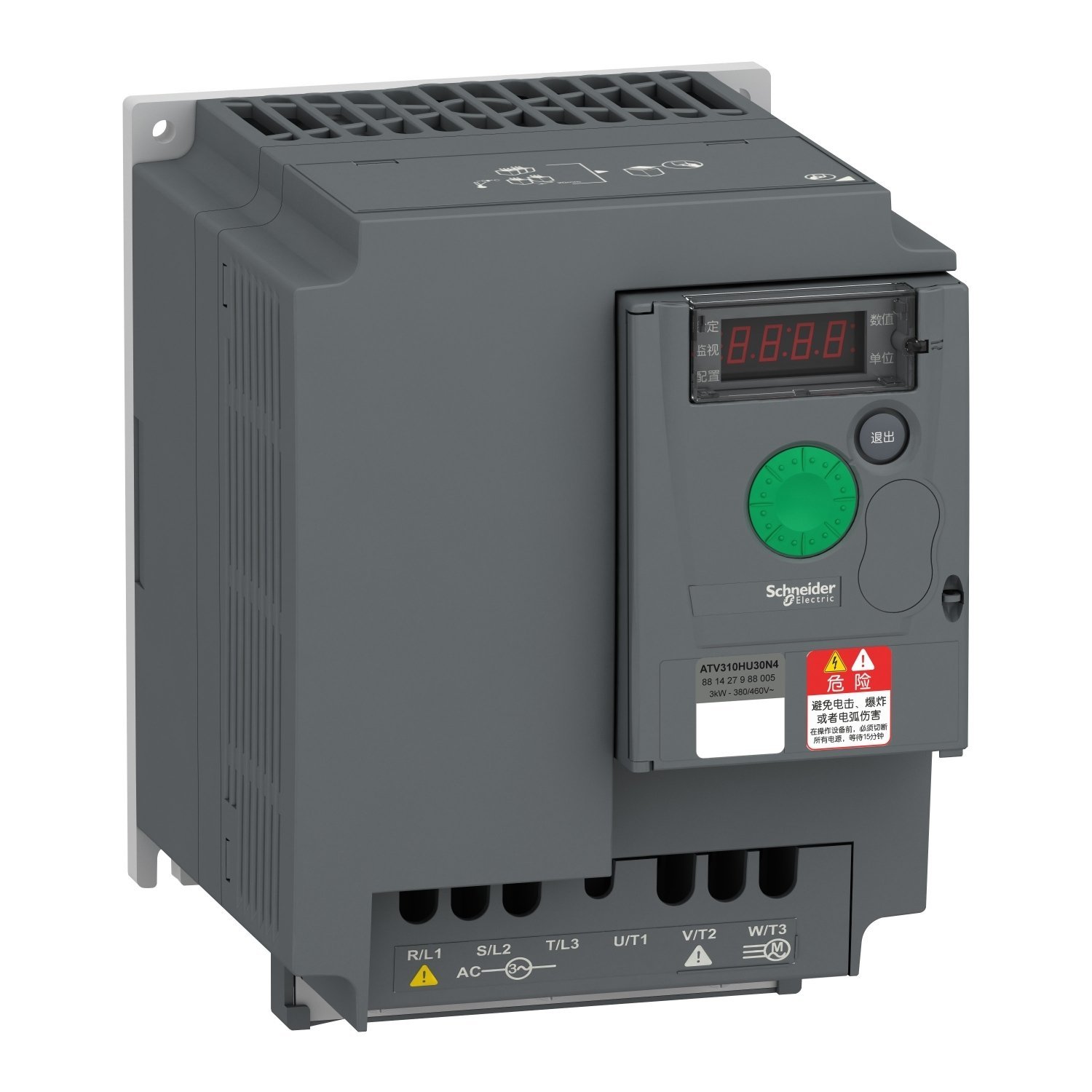

variable speed drive ATV310, 4 kW/5hp normal duty, 3 kW/4hp heavy duty, 380…460 V, 3 phases, without EMC filter
Manufacturer: Schneider Electric
Part Number: ATV310HU30N4A
Key Specifications
| Range of product | Easy Altivar 310 |
| Network number of phases | Three phase |
| [Us] rated supply voltage | 380…460 V – 15…10 % |
| Motor power kW | 4 kW for normal duty | 3 kW for heavy duty |
| Motor power hp | 5 hp for normal duty | 4 hp for heavy duty |
| Supply frequency | 50/60 Hz +/- 5 % |
| Line current | 14.2 A at 380 V (normal duty) | 11.1 A at 380 V (heavy duty) | 11.6 A at 460 V (normal duty) | 9.2 A at 460 V (heavy duty) |
| Apparent power | 9.3 kVA at 460 V (normal duty) | 7.3 kVA at 460 V (heavy duty) |
| Continuous output current | 8.9 A normal duty | 7.1 A heavy duty |
| Maximum transient current | 9.8 A during 60 s (normal duty) | 10.7 A during 60 s (heavy duty) |
| Power dissipation in W | 94.0 W, at In (normal duty) | 80.2 W, at In (heavy duty) |
| Speed drive output frequency | 0.5…400 Hz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 2…12 kHz adjustable |
| Output voltage | 380…460 V three phase |
| Minimum switching current | 5 mA at 24 V DC for logic relay |
| Maximum switching current | 2 A at 250 V AC on inductive load cos phi = 0.4 L/R = 7 ms for logic relay | 2 A at 30 V DC on inductive load cos phi = 0.4 L/R = 7 ms for logic relay | 3 A at 250 V AC on resistive load cos phi = 1 L/R = 0 ms for logic relay | 4 A at 30 V DC on resistive load cos phi = 1 L/R = 0 ms for logic relay |
| Frequency resolution | Analog input: converter A/D, 10 bits | Display unit: 0.1 Hz |
| Net weight | 1.8 kg |
| IP degree of protection | IP20 without blanking plate on upper part | IP41 top |
| Package 1 Weight | 2.141 kg |
| Package 2 Weight | 9.711 kg |
