With the Altivar 12, you get greater reliability and simplicity of operation and save even more time for all your applications. The Altivar 12 is particularly suitable for use in applications involving simple industrial machines or certain consumer machines. The Altivar 12 integrates as standard all the technologies that will make you forget it is there. Its design and choice of components make the Altivar 12 an extremely efficient, reliable and durable drive.
- Advanced functions for increased productivity (integrated PID, multi-speed, etc.)
- Easy communication with all other machine components via integrated universal Modbus serial link
- Smaller footprint, notably in terms of the depth of equipment, as the baseplate mounted version dissipates heat into the machine frame
- Easy access angles
- Numerous, easy to identify markings
- Fast detection and protection against motor current peaks (common in motor switching and catch on the fly applications)
- Perfect integration of single-phase 240 V model into the electrical network thanks to its built-in EMC filter
- Can be configured in its packaging
- Quick start option requiring no adjustment
- Intuitive navigation
- Even more compact
- Local control on the front panel
- Resistant to harsh operating environments
Specifications
| Manufacturer: | Schneider Electric |
| Series: | Altivar 12 |

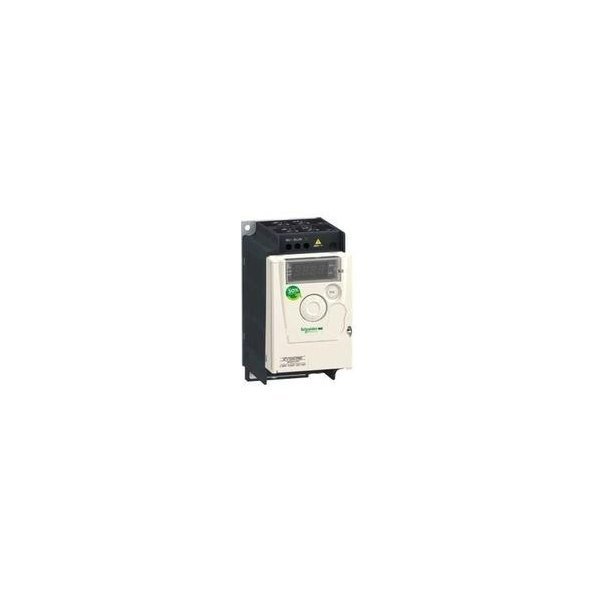

| Model: | ATV12H037M3 |
| Application: | general purpose |
| Capacity, kW: | 0.37 |
| Current, А: | 2.4 |
| Main power supply, V: | 200-240 |
| Phase: | 3 |
| Output frequency, Hz: | 0.5-400 |
| Enclosure: | IP 20 |
| Overload capacity, % per 1 min.: | 150 |
| Acceleration time, sec: | 0-999 |
| Deceleration time, sec: | 0-999 |
| EMC filter: | optional |
| Braking unit: | optional |
| Analog input: | 1 |
| Digital input: | 4 |
| Analog output: | 1 |
| Digital output: | 1 |
| Relay output: | 1 |
| RS485 (Modbus RTU): | + |
| PID: | PID – regulation |
| V/f control mode: | + |
| Vector control with feedback: | – |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10……+40 |
| Storage temperature, °С: | -25……+70 |
| Dimensions (W x H x D), mm: | 72х143х121,2 |
| Weight, kg: | 0,8 |
