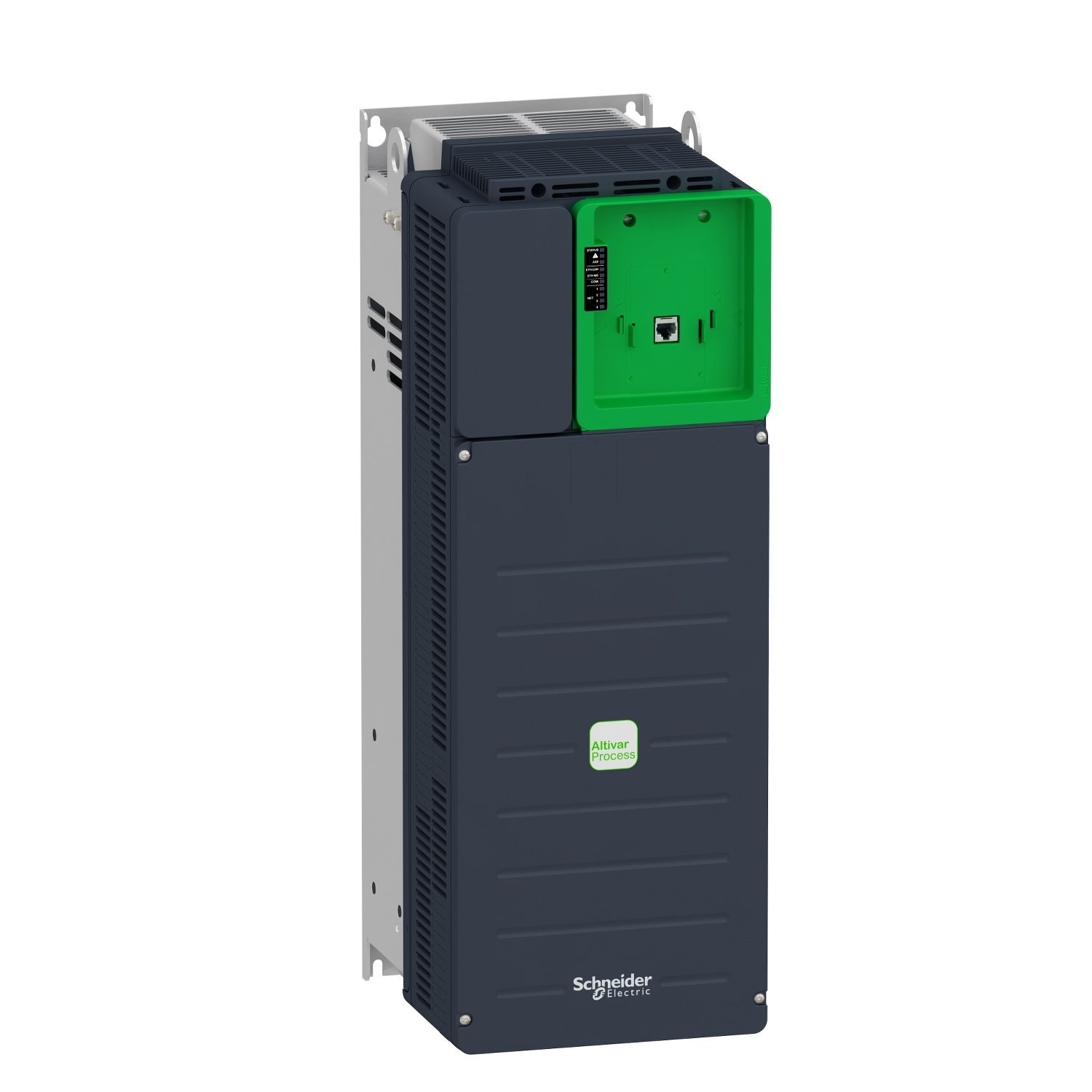

variable speed drive, Altivar Process ATV600, ATV630, cabinet Integration, IP00, 30kW, 380…480V, for US

Name: variable speed drive, Altivar Process ATV600, ATV630, cabinet Integration, IP00, 30kW, 380…480V, for US
Brand: Schneider Electric
SKU: ATV630D30N4ZU

Get a Quote

Add to wishlist

SKU: ATV630D30N4ZU Category: Altivar Process 630 Variable Frequency Drives VFD Brand: Schneider Electric

Description

variable speed drive, Altivar Process ATV600, ATV630, cabinet Integration, IP00, 30kW, 380…480V, for US

Manufacturer: Schneider Electric

Part Number: ATV630D30N4ZU

Key Specifications

Range of Product	Altivar Process ATV600
Mounting Mode	Cabinet mount
[Us] rated supply voltage	380…480 V
Relative symmetric mains voltage tolerance	10 %
Relative symmetric network frequency tolerance	5 %
nominal output current	61.5 A
IP degree of protection	IP20IEC 61800-5-1 \| IP00 at bottom terminals)IEC 60529
Supply frequency	50…60 Hz – 5…5 %
Motor power kW	30 kW normal duty) \| 22 kW heavy duty)
Maximum Horse Power Rating	40 hp normal duty \| 30 hp heavy duty
Line current	53.3 A 380 V normal duty) \| 45.9 A 480 V normal duty) \| 40.5 A 380 V heavy duty) \| 35.8 A 480 V heavy duty)
Continuous output current	61.5 A 4 kHz normal duty \| 46.3 A 4 kHz heavy duty
Speed drive output frequency	0.1…500 Hz
Maximum switching current	Relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC \| Relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC \| Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC \| Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC
Minimum switching current	Relay output R1, R2, R3 5 mA 24 V DC
Phase	3 phase
Output voltage	<= power supply voltage
Permissible temporary current boost	1.1 x In 60 s normal duty) \| 1.5 x In 60 s heavy duty)
Frequency resolution	Display unit 0.1 Hz \| Analog input 0.012/50 Hz
Power range	30…50 kW 380…440 V 3 phase \| 30…50 kW 480…500 V 3 phase
Enclosure mounting	With heat sink
Maximum output frequency	500 kHz
Switching frequency	2…12 kHz adjustable \| 4…12 kHz with derating factor
Nominal switching frequency	4 kHz
Maximum Input Current per Phase	53.3 A
Maximum output voltage	480.0 V
Apparent power	38.2 kVA 480 V normal duty) \| 29.8 kVA 480 V heavy duty)
Maximum transient current	67.7 A 60 s normal duty) \| 69.5 A 60 s heavy duty)
Network Frequency	50-60 Hz
Base load current at high overload	46.3 A
Base load current at low overload	61.5 A
Power dissipation in W	Natural convection 93 W 380 V 4 kHz \| Forced convection 640 W 380 V 4 kHz
Net Weight	56.9 lb(US) (25.8 kg)
Overvoltage category	III
Package weight(Lbs)	63.5 lb(US) (28.8 kg)
