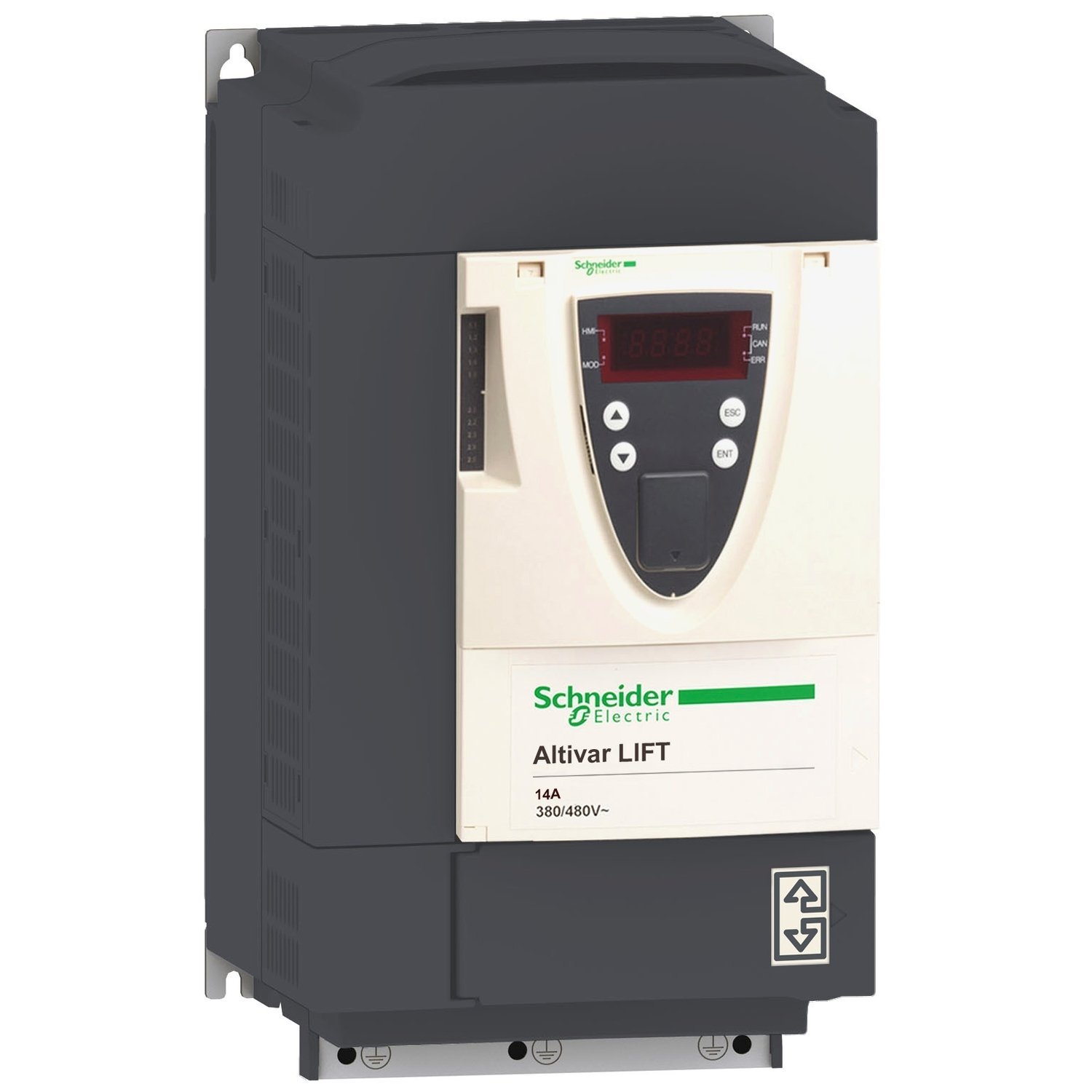

variable speed drive Altivar Lift, 5.5 kW 7.5 Hp, 380…480 V three-phase, EMC filter, with heat sink
Manufacturer: Schneider Electric
Part Number: ATV71LD14N4Z
EAN: 3606480326240
Key Specifications
| Network number of phases | 3 phases |
| Supply voltage limits | 323…528 V |
| Supply frequency | 50…60 Hz – 5…5 % |
| Motor power kW | 5.5 kW, 3 phases at 380…480 V |
| Motor power hp | 7.5 hp, 3 phases at 380…480 V |
| Line current | 20.3 A for 380 V 3 phases 5.5 kW / 7.5 hp | 17 A for 480 V 3 phases 5.5 kW / 7.5 hp |
| Range of product | Altivar Lift |
| [Us] rated supply voltage | 380…480 V – 15…10 % |
| Apparent power | 13.4 kVA at 380 V 3 phases 5.5 kW / 7.5 hp |
| Nominal output current | 14.3 A at 4 kHz 380 V 3 phases 5.5 kW / 7.5 hp | 11 A at 4 kHz 460 V 3 phases 5.5 kW / 7.5 hp |
| Maximum transient current | 19.4 A for 2 s 3 phases / 5.5 kW / 7.5 hp |
| Speed drive output frequency | 0…599 Hz |
| Output voltage | <= power supply voltage |
| Minimum switching current | 3 mA at 24 V DC for configurable relay logic |
| Maximum switching current | 5 A at 250 V AC on resistive load – cos phi = 1 – L/R = 0 ms (R1, R2) | 5 A at 30 V DC on resistive load – cos phi = 1 – L/R = 0 ms (R1, R2) | 2 A at 250 V AC on inductive load – cos phi = 0.4 – L/R = 7 ms (R1, R2) | 2 A at 30 V DC on inductive load – cos phi = 0.4 – L/R = 7 ms (R1, R2) |
| Frequency resolution | Display unit: 0.1 Hz | Analog input: 0.024/50 Hz |
| Switching frequency | 1…16 kHz adjustable |
| Nominal switching frequency | 8 kHz |
| Network frequency | 47.5…63 Hz |
| IP degree of protection | IP20 on upper part without blanking plate on cover conforming to IEC 61800-5-1 | IP20 on upper part without blanking plate on cover conforming to IEC 60529 | IP21 conforming to IEC 61800-5-1 | IP21 conforming to IEC 60529 | IP41 on upper part conforming to IEC 61800-5-1 | IP41 on upper part conforming to IEC 60529 | IP54 on lower part conforming to IEC 61800-5-1 | IP54 on lower part conforming to IEC 60529 |
| Package 1 Weight | 7.511 kg |
| Package 2 Weight | 56.200 kg |
