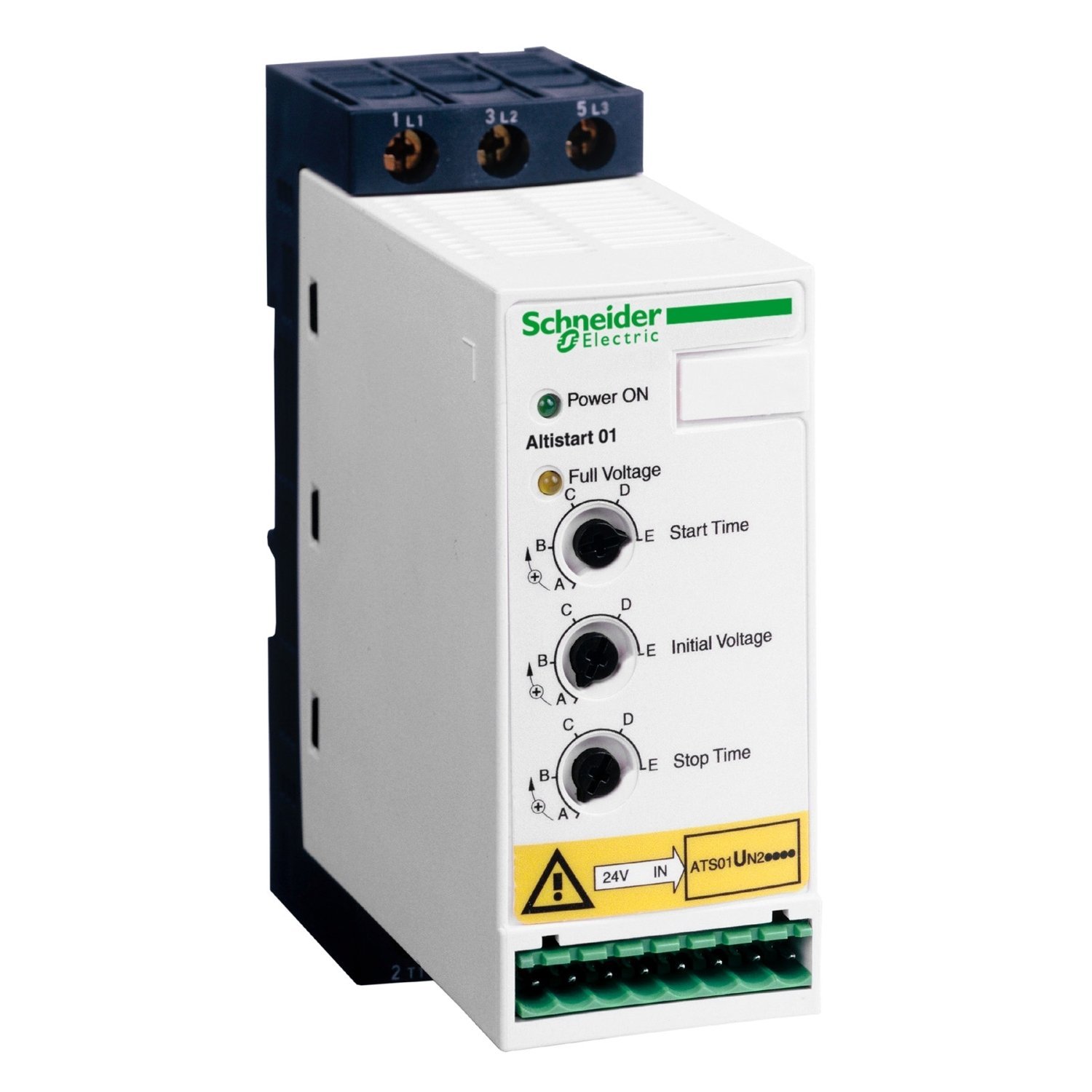

soft starter in IP54 metal enclosure – ATS01 – 44 A – 400 V – 18.5 KW

Manufacturer: Telemecanique

Part Number: ATS01N244QE41

Range of product	Altistart 01
Network number of phases	3 phases
[Us] rated supply voltage	400 V – 15…10 %
Supply voltage limits	340…440 V
Supply frequency	50…60 Hz – 5…5 %
Network frequency	47.5…63 Hz
Motor power kW	18.5 kW, 3 phases at 400 V
Output voltage	<= power supply voltage
[Uc] control circuit voltage	Built into the starter
Current consumption	132 A at nominal load
Power dissipation in W	22 W at full load and at end of starting \| 268 W in transient state
Discrete input voltage	24 V
Discrete output current	2 A DC-13 \| 3 A AC-15
Discrete output voltage	24 V DCrelay outputs \| 250 V ACrelay outputs
Minimum switching current	10 mA at 17 V DC for relay outputs
IP degree of protection	On front panel: IP20
