Vacon NXP is a premium air-cooled AC drive for use in all applications where reliability, robust performance, precision and power are required. Vacon NXP is the smart drive of choice. With fast fieldbus options and exceptional programming flexibility, your NXP is easily integrated into any plant’s automation system.
- Wide set of applications adapts the Vacon NXP to virtually any need
- Controls induction and permanent magnet motors
- Dynamic open and closed loop vector control
- Complete range of communications and I/O options
- Fast drive-to-drive communication
- High number of standardized options
- Wide range of applications adapts the Vacon NXP to virtually any need
- Controls induction and permanent magnet motors
- Dynamic open and closed loop vector control
- Complete range of communications and I/O options
Specifications
| Manufacturer: | Vacon |
| Series: | Vacon NXP |

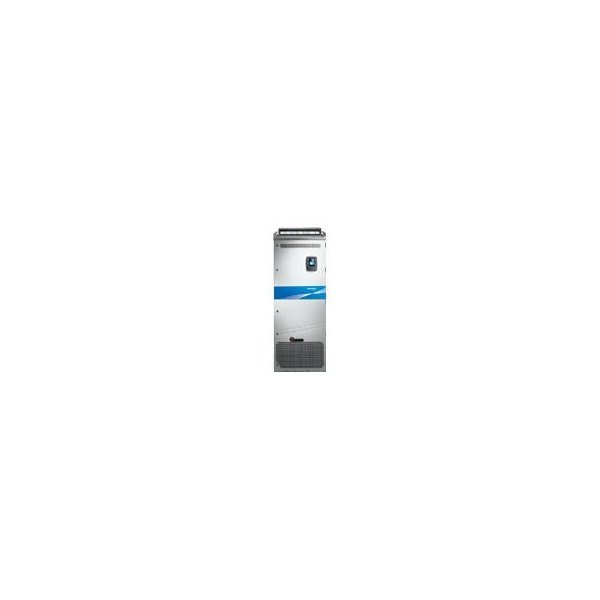

| Model: | NXP 0072 5A2H0SSS |
| Application: | pumps / fans / lifts / cranes / general purpose |
| Capacity, kW: | 37 |
| Current, А: | 72 |
| Main power supply, V: | 380-500 |
| Phase: | 3 |
| Output frequency, Hz: | 0…..320 |
| Enclosure: | IP 21 |
| Overload capacity, % per 1 min.: | 110 |
| Acceleration time, sec: | 0-3000 |
| Deceleration time, sec: | 0-3000 |
| EMC filter: | + |
| Braking unit: | optional |
| Analog input: | 2 |
| Digital input: | 6 |
| Analog output: | 1 |
| Digital output: | 1 |
| Relay output: | 2 |
| RS485 (Modbus RTU): | + |
| Starting torque: | 200% |
| PID: | PID – regulation |
| V/f control mode: | + |
| Vector control with feedback: | + |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10……+40 |
| Storage temperature, °С: | -40……+70 |
| Dimensions (W x H x D), mm: | 237x591x257 |
| Weight, kg: | 35 |
