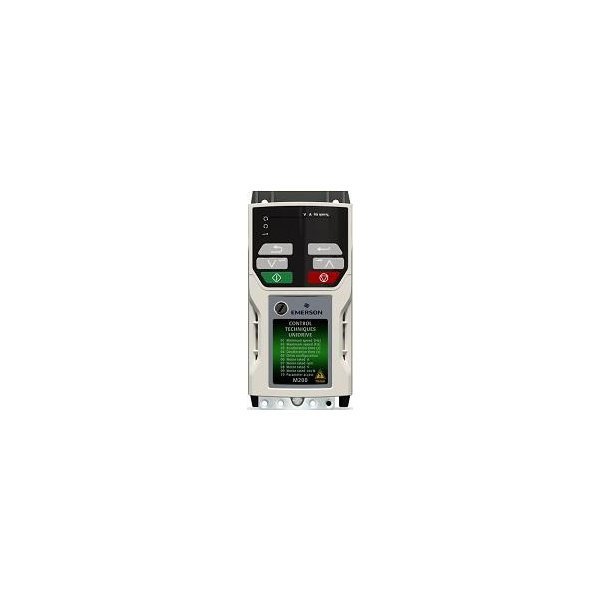

Emotron’s Unidrive M200 frequency inverter has been designed for applications that require flexible integration with systems via modern communication networks and fieldbuses or advanced RFC-A open-loop motor control. The M200 provides the most convenient upgrade path for Commander SK users.
- M200’s SI interface enables integration with a wide range of available industry standard fieldbuses or extended I/O such as SI-Ethernet, SI-EtherCAT, SI-PROFINET, SI-PROFIBUS, SI-CANopen and SI-DeviceNet
- AI-485 Adaptor option permits connection to RS485 networks using Modbus RTU
- Rotor Flux Control (RFC-A) utilizes closed-loop current control to give maximum stability of induction motors at all powers
- Easy-to-use fixed LED keypad
- Useful parameter guide located on the front of the drive
- Use Unidrive M Connect PC tool or SD card with AI-Backup adaptor to clone and transfer parameter sets
- Din rail mounting is supported below 1.5kW
Specifications
| Manufacturer: | Emerson |
| Series: | Unidrive M200 |
| Model: | M200-052 00250A |
| Application: | general purpose |
| Capacity, kW: | 5,5 |
| Current, А: | 25 |
| Main power supply, V: | 200-240 |
| Phase: | 3 |
| Output frequency, Hz: | 0-550 |
| Enclosure: | IP20 / UL open class (NEMA 1). UL TYPE 1 compliance requires the appropriate conduit kit to be fitted |
| Overload capacity, % per 1 min.: | 150 |
| EMC filter: | + |
| Braking unit: | optional |
| Analog input: | 2 |
| Digital input: | 4 |
| Analog output: | 1 |
| Digital output: | 1 |
| Relay output: | 1 |
| PID: | – |
| V/f control mode: | + |
| Vector control with feedback: | – |
| Sensorless vector control: | – |
| Operation temperature, °С: | -20…..+40 |
| Storage temperature, °С: | -40…..+60 |
| Dimensions (W x H x D), mm: | 143x365x192 |
| Weight, kg: | 7,4 |
