FCP106N3K0T4C66H1FSXXAX0 overview

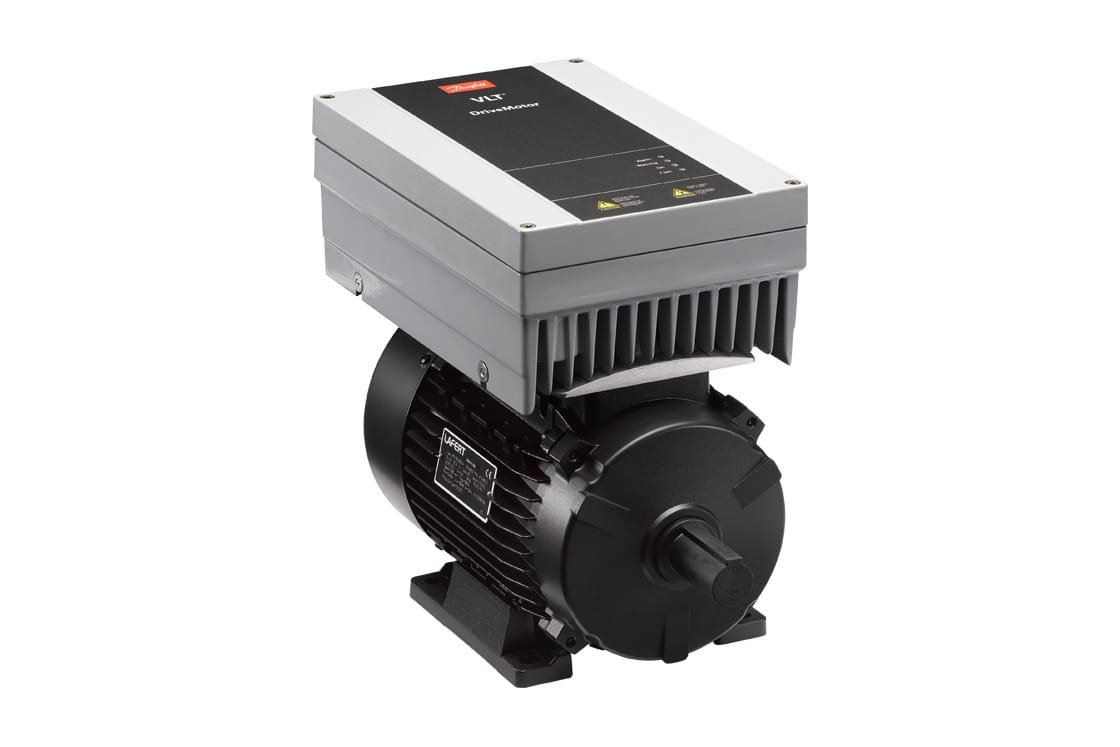

FCP106N3K0T4C66H1FSXXAX0 is a VLT® DriveMotor FCP 106 (integrated drive) rated 3 kW / 4 HP for three-phase 380–480 V mains supply. It is built in an Standard IP66/UL type 4X enclosure, frame size MH2 and weighs 6 kg net (6.3 kg packed).
Danfoss ordering number: 134X1910, EAN 5710108080136.
Configuration
- RFI filter Class A1/B (EMC category C1)
Model code breakdown
What each part of FCP106N3K0T4C66H1FSXXAX0 means:
| Position | Code | Meaning |
|---|---|---|
| Product Group | FCP | VLT® DriveMotor FCP |
| Series | 106 | 106 |
| Power Size | N3K0 | 3.0 kW /4.0 HP |
| Voltage | T4 | Three phase 380-480 VAC |
| Enclosure | C66 | Standard IP66/UL type 4X |
| RFI Filter | H1 | Integrated RFI Class A1/B |
| Fan Option | F | With Fan |
| Special Version | SXX | Latest release – std. software |
| Options | AX | No option |
| Memory module | 0 | Memory module |
Same configuration, other power sizes
- 0.55 kW: FCP106NK55T4C66H1FSXXAX0
- 0.75 kW: FCP106NK75T4C66H1FSXXAX0
- 2.2 kW: FCP106N2K2T4C66H1FSXXAX0
- 5.5 kW: FCP106N5K5T4C66H1FSXXAX0
