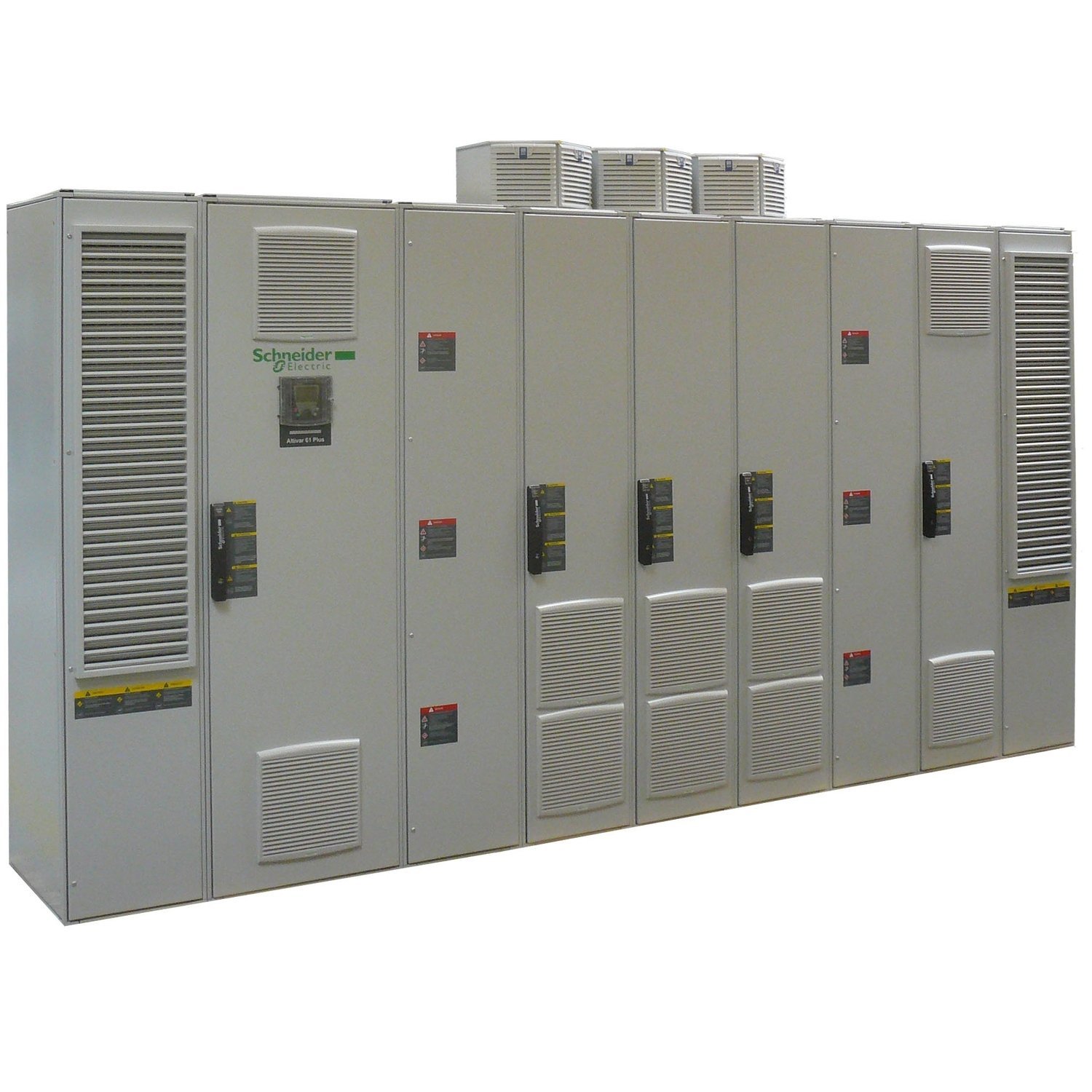

enclosed variable speed drive ATV61 Plus-LH -2400 KW – 690V – IP54- low harmonic

Manufacturer: Schneider Electric

Part Number: ATV61EXA5M24YH

Range of product	Altivar 61 Plus-LH
Network number of phases	3 phases
rated supply voltage	690 V +/- 10 %
Supply voltage limits	621…759 V
Supply frequency	50…60 Hz – 5…5 %
Network frequency limits	47.5…63 Hz
Motor power kW	2400 kW, 3 phases at 690 V
Line current	2150 A at 690 V3 phases / 2400 kW
IP degree of protection	IP54
Apparent power	2570 kVA for 690 V, 3 phases 2400 kW
Continuous output current	2430 A, 2.5 kHz at 690 V 3 phases
Maximum transient current	2916 A (duration=60 s) at 690 V 3 phases
Speed drive output frequency	0.1…500 Hz
Nominal switching frequency	2.5 kHz
Switching frequency	2…4.9 kHz adjustable \| 2.5…8 kHz
Overvoltage category	Class 3 conforming to EN 50178
Output voltage	<= power supply voltage
Minimum switching current	3 mA at 24 V DC (configurable relay logic)
Maximum switching current	5 A at 250 V AC on resistive load – cos phi = 1 for configurable relay logic \| 5 A at 30 V DC on resistive load – L/R = 0 ms for configurable relay logic \| 2 A at 250 V AC on inductive load – cos phi = 0.4 for configurable relay logic \| 2 A at 30 V DC on inductive load – L/R = 7 ms for configurable relay logic
Frequency resolution	Analog input: 0.024/50 Hz \| Display unit: 0.1 Hz
Colour of enclosure	Light grey (RAL 7035)
Net weight	6060 kg
