EFC5610 is a universal, economical frequency converter for reliable speed control and demand-oriented energy supply. V/f control, SVC and FOC control, easy installation and commissioning as well as an increased power range enable a wide range of applications. Rexroth EFC 5610 offers a power range of up to 160 kW, an efficient vector control for an optimum torque curve and high starting torque.
- Built-in brake chopper (up to 22 kW) and mains filter
- Control technology: V/f, SVC, FOC
- Safety technology: Safe Torque Off (STO)
- Operation of asynchronous and synchronous motors
- Integrated brake chopper and mains filter
- Integrated operating panel for simple, fast commissioning
- Expandability through I/O and fieldbus modules
- Display – dust cover with 4 diagnostic LED, LED 5 digit and LCD option
- Protection type IP20
- Use in HD (heavy duty) and ND (normal duty) mode
Specifications
| Manufacturer: | Bosch Rexroth |
| Series: | EFC 5610 |

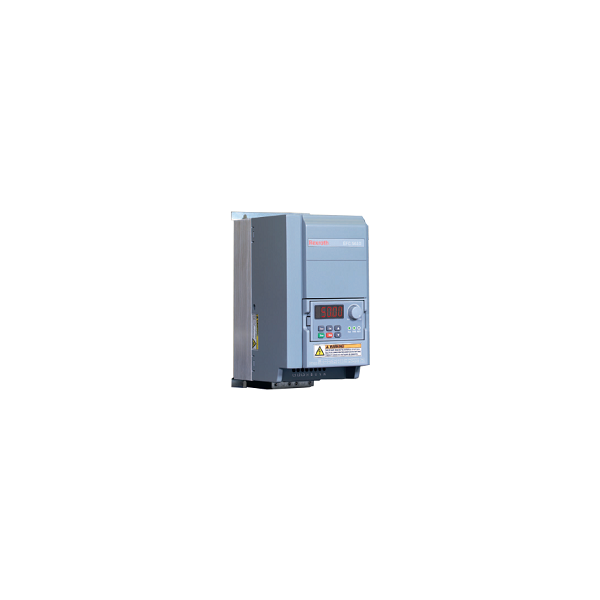

| Model: | EFC5610-0K75-3P2-MDA-7P |
| Application: | general purpose |
| Capacity, kW: | 0,75 |
| Current, А: | 4.1 |
| Main power supply, V: | 200-240 |
| Phase: | 3 |
| Output frequency, Hz: | 0-400 |
| Enclosure: | IP20 |
| Overload capacity, % per 1 min.: | 150 |
| Braking unit: | + |
| Analog input: | 2 |
| Digital input: | 5 |
| Analog output: | 1 |
| Digital output: | 1 |
| Relay output: | 1 |
| RS485 (Modbus RTU): | Modbus (external: PROFIBUS CANopen Sercos EtherCAT (Profil CANopen, CoE) Modbus TCP PROFINET EtherNet/IP) |
| Starting torque: | 100% at 1.5 Hz; 150% at 3 Hz or 200 % at 0.5 Hz |
| PID: | + |
| V/f control mode: | + |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10…..+45 |
| Dimensions (W x H x D), mm: | 95x206x170 |
| Weight, kg: | 1,9 |
