Altivar Process is a Services Oriented Drive designed to reduce OPEX in Process & Utilities installations, thanks to embedded EcoStruxure Machine Advisor. ATV600 is a range of ready-to-order drives and custom engineered drives focused on fluids management processing and energy saving. Altivar Process drives offer extensive flexibility in water & wastewater, mining, minerals & metals, oil & gas and food & beverage applications. Depending on customer requirements, Altivar Process drives are available as wall-mounting, floor standing and optimized solutions for integration into cabinets. Altivar Process drives are designed to take numerous accessories and options to increase their functionality and also their capacity for integration and adaptation.
- Sustainable cost savings thanks to predictive condition-based maintenance
-
Up to 20% downtime reduction without additional investment -
Embedded Pump curves embedded (easy to set 5 points curve) -
Anti-jam function prevents downtime -
Energy savings and protection of the grid by means of integrated harmonic filters -
Web server and services via Ethernet -
Installation EMC conformity by means of integrated EMC filters -
Designed for IT systems -
Wall-mounting IP 20/21/UL Type 1 from 0.75 to 315 kW/1 to 500 HP, ready-to-use for easy integration inside or without an enclosure in an electrical room -
Wall-mounting IP 55 from 0.75 to 90 kW/1 HP to 125 HP, ready-to-use for easy integration in harsh environment and installations close to the system to reduce the length of the motor cable
Specifications
| Manufacturer: | Schneider Electric |
| Series: | ATV600 |

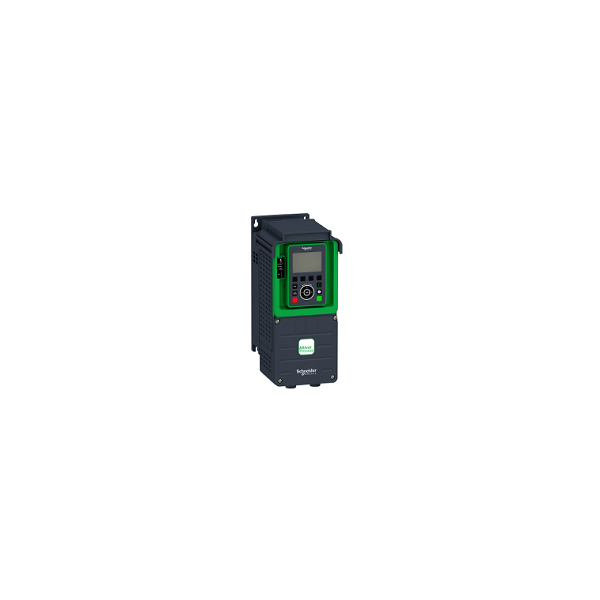

| Model: | ATV630U75M3 |
| Application: | pumps / fans |
| Capacity, kW: | 7.5 |
| Current, А: | 32.7 |
| Main power supply, V: | 200-240 |
| Phase: | 3 |
| Output frequency, Hz: | 0,1-500 |
| Enclosure: | IP21/UL Type 1 |
| Acceleration time, sec: | 0,01-9999 |
| Deceleration time, sec: | 0,01-9999 |
| EMC filter: | – |
| Braking unit: | DC injection |
| Analog input: | 3 |
| Digital input: | 6 |
| Analog output: | 2 |
| Digital output: | – |
| Relay output: | 3 |
| RS485 (Modbus RTU): | + |
| PID: | – |
| Operation temperature, °С: | -15…..+50 |
| Storage temperature, °С: | -40…..+70 |
| Dimensions (W x H x D), mm: | 173x405x231 |
| Weight, kg: | 7,7 |
