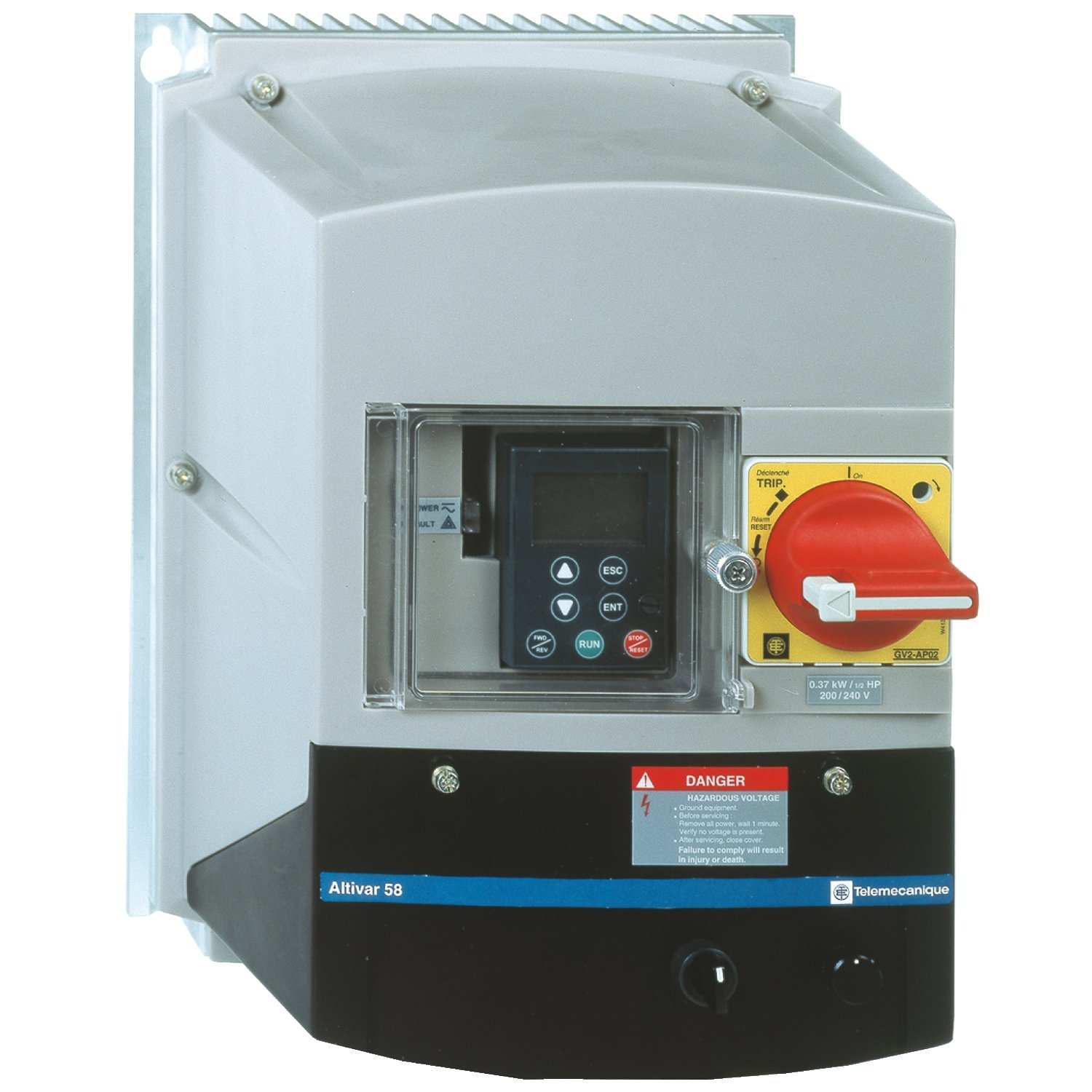

ATV58F 500V 37KW/HEATSK FVC 380/500V 5
Manufacturer: Schneider Electric
Part Number: ATV58FHD54N4
EAN: 3389110295542
Key Specifications
| Range of product | Altivar 58 |
| [Us] rated supply voltage | 380…500 V – 10…10 % |
| Supply frequency | 50…60 Hz – 5…5 % |
| Network frequency limits | 47.5…63 Hz |
| Network number of phases | 3 phases |
| Motor power kW | 37 kW |
| Motor power hp | 50 hp |
| Line current | 68 A at 380 V | 55 A at 500 V |
| Continuous output current | 79 A |
| Speed drive output frequency | 0.1…500 Hz |
| Switching frequency | 4 kHz |
| IP degree of protection | IP21 | IP41 on upper part |
