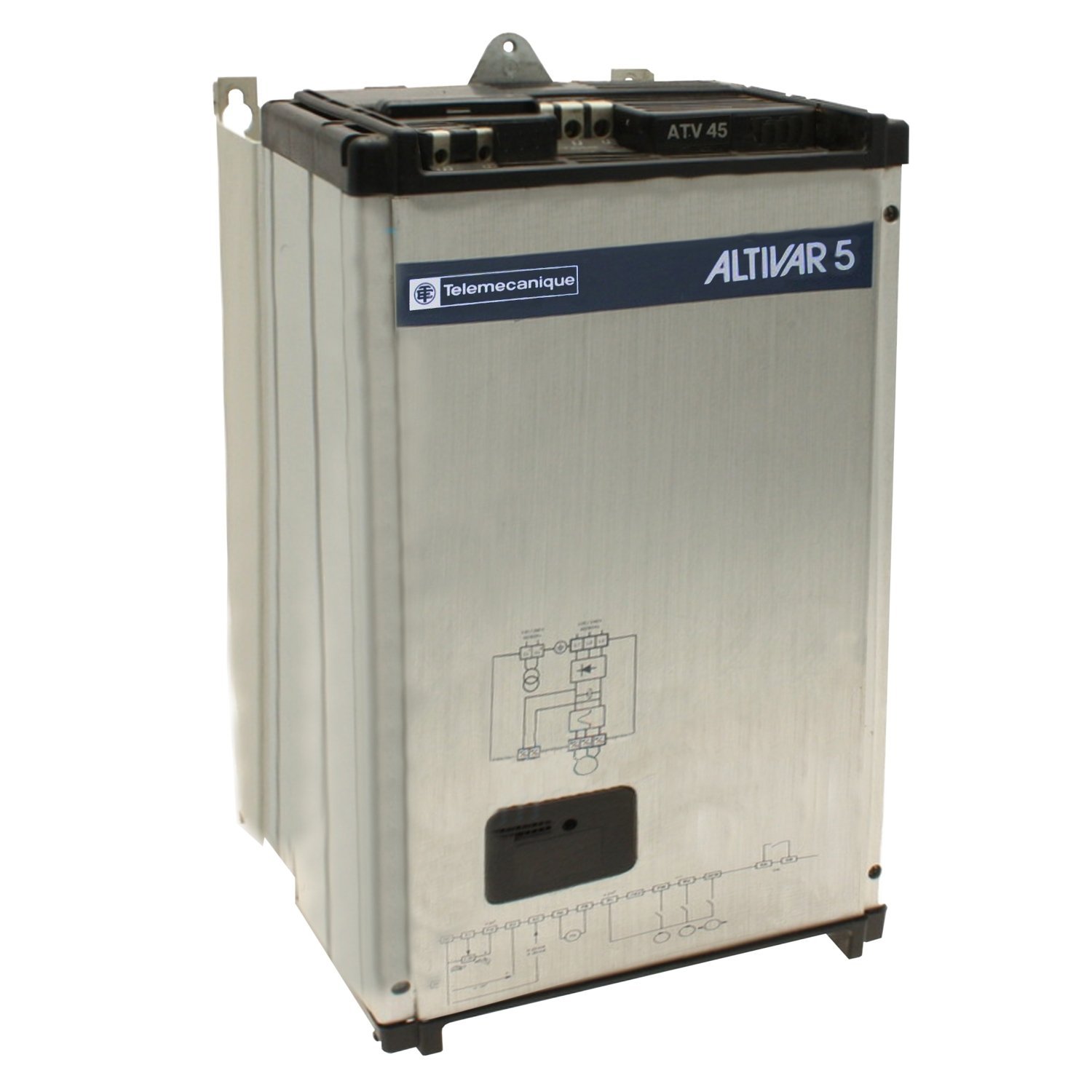

ATV45-2 2.2 kW 3 HP 200/240 V 3 phases IP20
Manufacturer: Schneider Electric
Part Number: ATV452U22M
Key Specifications
| Range of product | Altivar 5 |
| [Us] rated supply voltage | 200…240 V – 15…10 % |
| Supply frequency | 50…60 Hz – 5…5 % |
| Network frequency limits | 47.5…63 Hz |
| Network number of phases | 3 phases |
| Motor power kW | 2.2 kW |
| Motor power hp | 3 hp |
| Line current | 14 A |
| Continuous output current | 9.6 A |
| Speed drive output frequency | 1…132 Hz |
| Output voltage | <= power supply voltage |
| IP degree of protection | IP20 |
