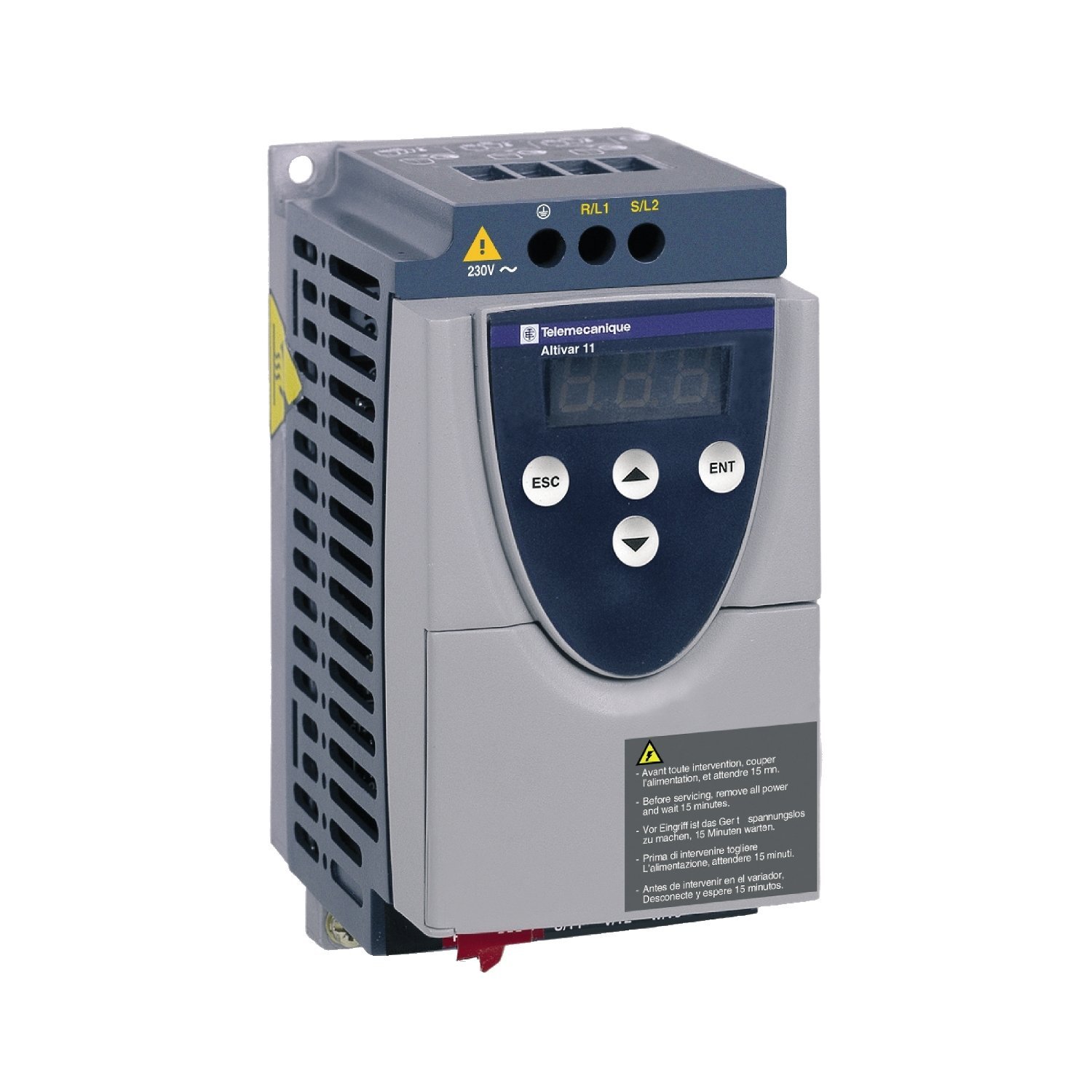

ATV11 0.37KW 230V 1PH 0.5HP with heat sink
Manufacturer: Telemecanique
Part Number: ATV11HU09M2E360
EAN: 3389118157620
Key Specifications
| Range of product | Altivar 11 |
| Network number of phases | 1 phase |
| [Us] rated supply voltage | 200…240 V – 15…10 % |
| Supply frequency | 50…60 Hz – 5…5 % |
| Motor power kW | 0.37 kW |
| Line current | 5.3 A at 230 V, Isc = 1 kA |
| Nominal output current | 2.1 A 230 V motor 4 kHz |
| Maximum transient current | 3.1 A for 60 s |
| Power dissipation in W | 20.5 W at nominal load |
| Switching frequency | 2…12 kHz adjustable | 4…12 kHz with derating factor |
| Minimum switching current | RA-RC 10 mA at 24 V DC |
| Maximum switching current | 2 A 250 V AC inductive cos phi = 0.4 7 ms RA-RC | 2 A 30 V DC inductive cos phi = 0.4 7 ms RA-RC | 5 A 250 V AC resistive cos phi = 1 0 ms RA-RC | 5 A 30 V DC resistive cos phi = 1 0 ms RA-RC |
| Frequency resolution | Display unit: 0.1 Hz | Analog input: converter A/D, 10 bits |
| Supply voltage limits | 170…264 V |
| Network frequency limits | 47.5…63 Hz |
| Speed drive output frequency | 0…200 Hz |
| Nominal switching frequency | 4 kHz |
| Output voltage | <= power supply voltage |
| Net weight | 1 kg |
| IP degree of protection | IP20 |
