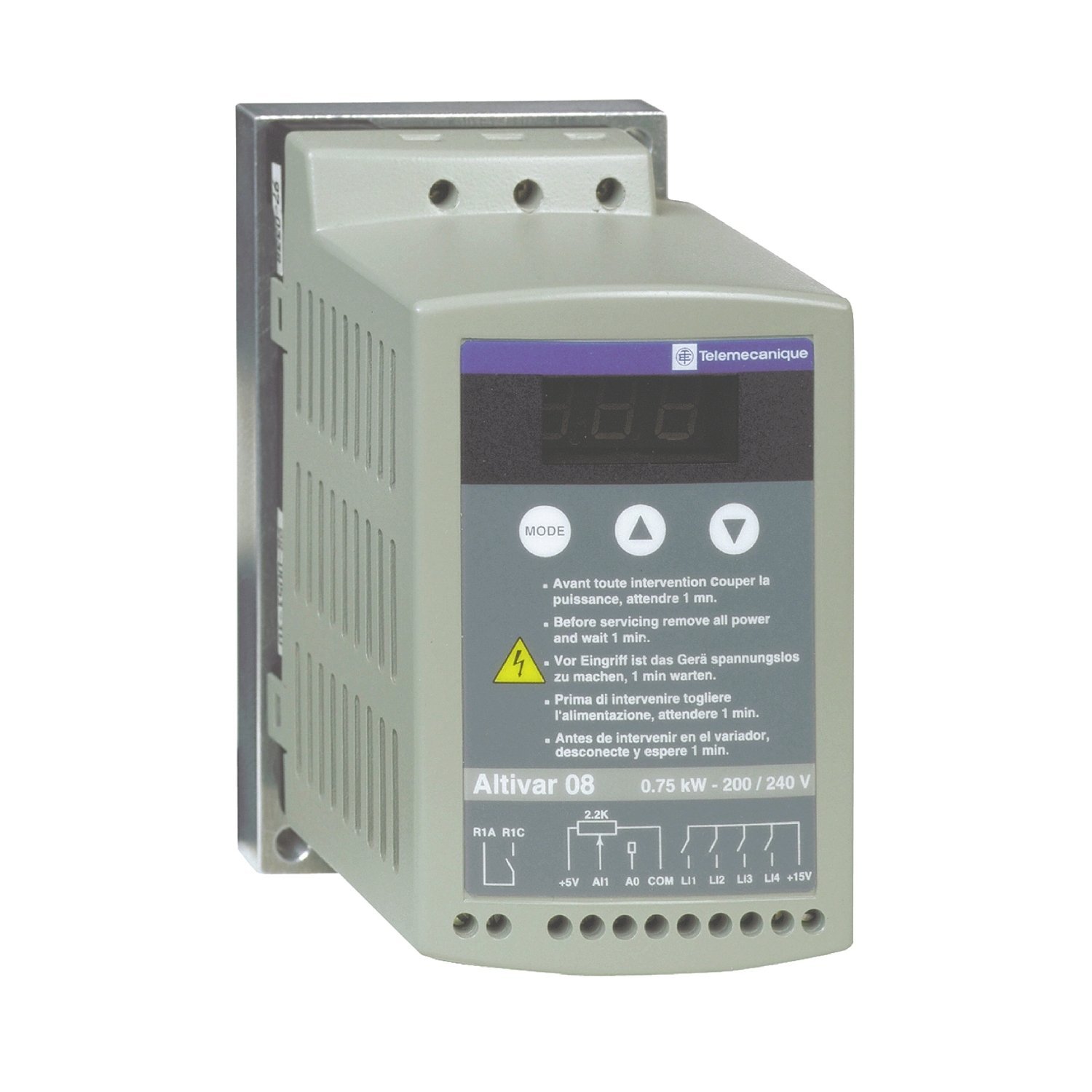

ATV08 0,18 kW base plate with EMC – single phase
Manufacturer: Schneider Electric
Part Number: ATV08PU05M2
EAN: 3389110124194
Key Specifications
| Range of product | Altivar 08 |
| Network number of phases | Single phase |
| [Us] rated supply voltage | 200…240 V +/- 10 % |
| Supply frequency | 50…60 Hz – 5…5 % |
| Motor power kW | 0.18 kW |
| Line current | 2.7 A at 230 V, Isc = 1 kA |
| Nominal output current | 1.1 A 4 kHz 230 V motor |
| Maximum transient current | 1.32 A for 60 s |
| Power dissipation in W | 15 W at nominal load |
| Supply voltage limits | 180…264 V |
| Network frequency limits | 47.5…63 Hz |
| Speed drive output frequency | 0.5…200 Hz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 2…16 kHz adjustable | 4…16 kHz with derating factor |
| Output voltage | <= power supply voltage |
| Minimum switching current | R1A, R1C 10 mA at 24 V DC |
| Maximum switching current | 1.5 A 250 V AC inductive cos phi = 0.4 7 ms R1A, R1C | 1.5 A 30 V DC inductive cos phi = 0.4 7 ms R1A, R1C | 1.5 A 250 V AC resistive cos phi = 1 0 ms R1A, R1C | 1.5 A 30 V DC resistive cos phi = 1 0 ms R1A, R1C |
| IP degree of protection | IP20 |
