The Schneider’s enclosed Altivar 31C series drives offer with its rugged design, compact size and integrated functions is specifically adapted to respond to numerous applications requiring an IP 55 degree of protection in a hostile environment. These characteristics also offer the possibility of installing the Altivar 31C drive as close to the motor as possible.
- Customisable enclosure for ready-to-use motor starter applications for 200 to 240 V single-phase supply and up to 4 kW for 380 to 500 V three-phase supply
- Standard enclosure for motors rated above 5.5 kW for 380 to 500 V three-phase supply
- An integrated terminal with display unit
- Menu scrolling keys
- Run and Stop keys for local control
- Modbus and CANopen industrial communication protocols as standard
- The entire range complies with: international standards IEC 61800-5-1; IEC 61800-2 and IEC 61800-3; UL, CSA and GOST certification;CE marking
- Possibility of installing the drive as close to the motor as possible
- Integrated functions specifically adapted to respond to applications requiring an IP55 degree of protection in a hostile environment
Specifications
| Manufacturer: | Schneider Electric |
| Series: | Altivar 31С |

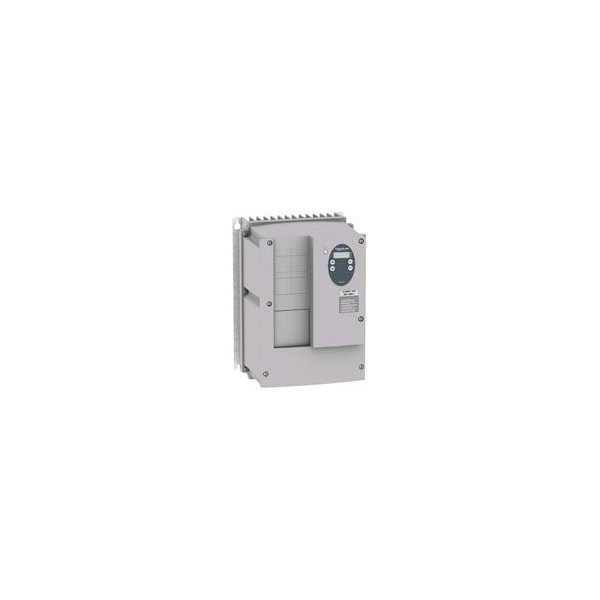

| Model: | ATV 31CU30N4 |
| Application: | pumps / fans / general purpose |
| Capacity, kW: | 3 |
| Current, А: | 7.1 |
| Main power supply, V: | 380-500 |
| Phase: | 3 |
| Output frequency, Hz: | 0.5-500 |
| Enclosure: | IP 55 |
| Overload capacity, % per 1 min.: | 150 |
| Acceleration time, sec: | 0,1-999,9 |
| Deceleration time, sec: | 0,1-999,9 |
| EMC filter: | + |
| Braking unit: | optional |
| Analog input: | 3 |
| Digital input: | 6 |
| Analog output: | 2 |
| Digital output: | 2 |
| Relay output: | 2 |
| RS485 (Modbus RTU): | Modbus and CANopen |
| PID: | PID – regulation |
| V/f control mode: | – |
| Vector control with feedback: | – |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10……+40 |
| Storage temperature, °С: | -25……+70 |
| Dimensions (W x H x D), mm: | 230х340х208 |
| Weight, kg: | 10,7 |
