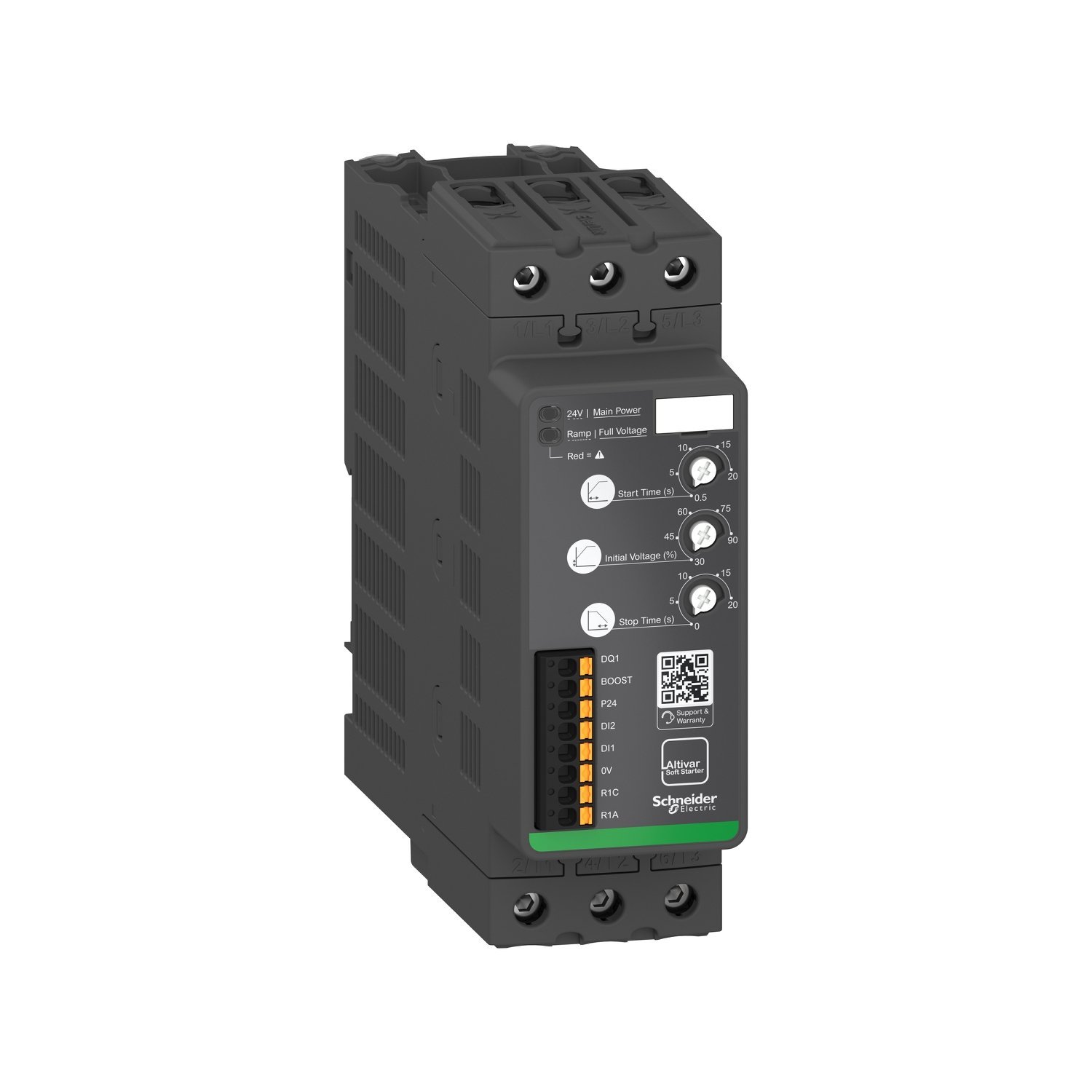

Altivar Soft Starter ATS130, 65A, 200 to 480V AC, control supply 24V DC
Manufacturer: Schneider Electric
Part Number: ATS130N2D65LT
EAN: 3606486007419
Key Specifications
| Range of product | Altivar Soft Starter ATS130 |
| Network number of phases | 3 phases |
| Ue power supply voltage | 200…480 V – 15…10 % |
| power supply frequency | 50…60 Hz +/- 5 Hz |
| [Ie] rated operational current | 65 A in line (at <40 °C) |
| IP degree of protection | IP20 |
| Motor power kW | 18.5 kW at 230 V normal duty | 30 kW at 400 V normal duty | 37 kW at 440 V normal duty |
| Motor power hp | 20 hp at 200 V normal duty | 20 hp at 208 V normal duty | 20 hp at 230 V normal duty | 40 hp at 460 V normal duty | 50 hp at 480 V normal duty |
| Overload current profile | 300 % Ie for 5 s |
| Minimum motor current | 20 % Ie |
| [Us] control circuit voltage | 24 V DC +/- 10 % |
| Control power | 21.6 W starting and stopping | 3 W steady state |
| Rated current pwr loss specification | 65 A |
| Power loss static current independent | 3 W |
| Power loss per device current dependent | 16 W |
| Power loss during starting | 397 W 300 % Ie |
| [Uc] control circuit voltage | 24 V DC |
| Minimum switching current | 2.5 mA at 24 V DC for relay outputs |
| Maximum switching current | On resistive load for relay outputs : 1 A 250 V AC 400000 cycles | On resistive load for relay outputs : 1 A 30 V DC 400000 cycles | On inductive load for relay outputs : 1 A 250 V AC cos phi = 0.4 100000 cycles | On inductive load for relay outputs : 1 A 30 V DC cos phi = 0.4 100000 cycles |
| Net weight | 1.3 kg |
| Suitable for mounting onto standard rails | True |
| [Uimp] rated impulse withstand voltage | 4 kV |
| [Ui] rated insulation voltage | 480 V |
| Package 1 Weight | 1.510 kg |
| Package 2 Weight | 69.500 kg |
