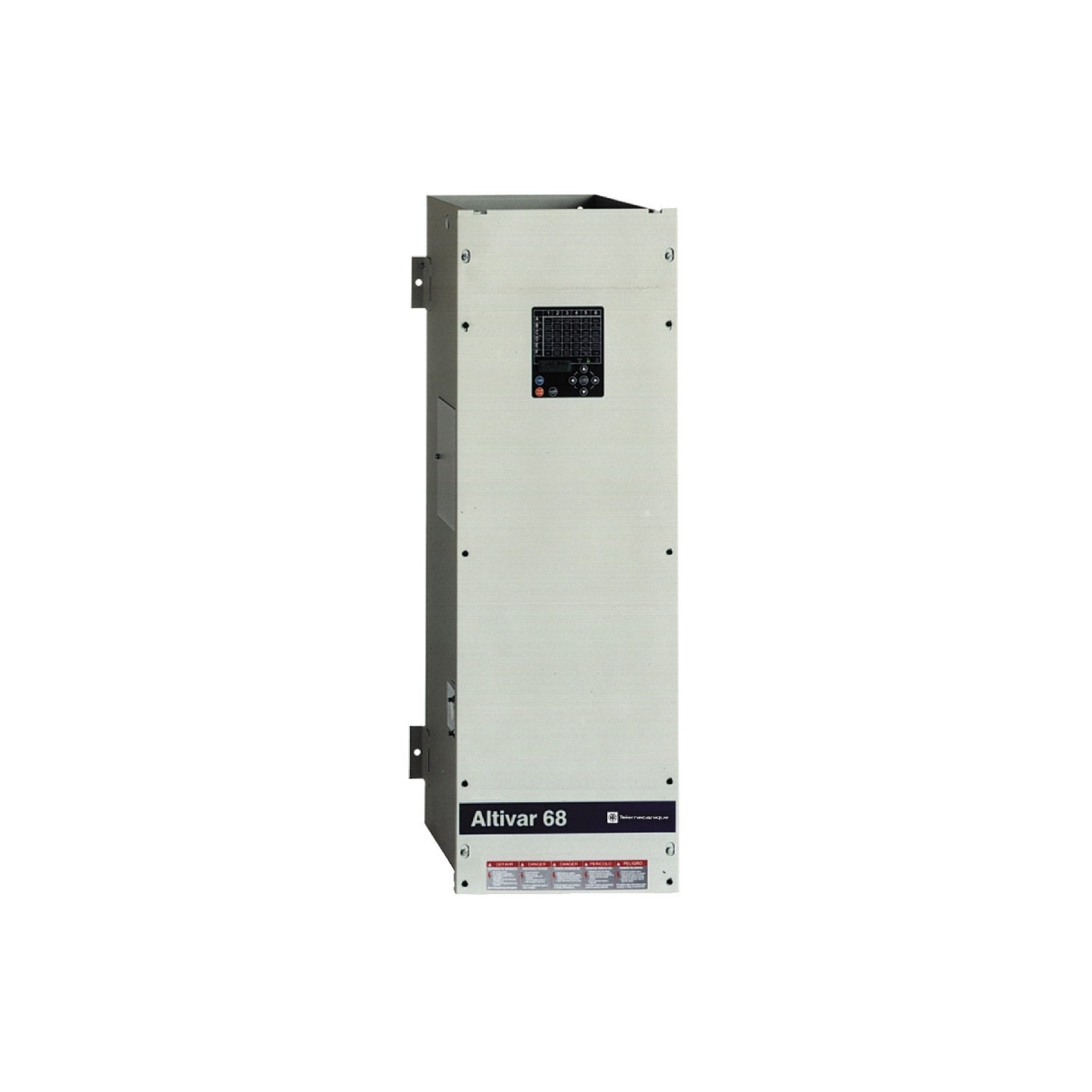

adjustable speed drive ATV-68F with heat sink – 110 kW – without EMC filter
Manufacturer: Schneider Electric
Part Number: ATV68FC15N4
EAN: 3389110297492
Key Specifications
| Range of product | Altivar 68 |
| [Us] rated supply voltage | 400…500 V – 10…10 % |
| Supply frequency | 50…60 Hz – 5…5 % |
| Network frequency limits | 47.5…63 Hz |
| Network number of phases | 3 phases |
| Motor power kW | 110 kW at 400…500 V |
| Motor power hp | 150 hp |
| Line current | 194 A at 400 V | 177 A at 440 V | 169 A at 460 V | 157 A at 500 V |
| Continuous output current | 208 A at 400 V | 189 A at 440 V | 180 A at 460 V | 167 A at 500 V |
| Speed drive output frequency | 0…300 Hz |
| Nominal switching frequency | 2.5 kHz |
| Switching frequency | 2.5…8 kHz with current derating |
| Output voltage | <= power supply voltage |
| IP degree of protection | IP00 |
