ACSM1 works well for machinery applications from basic speed and torque control to demanding position control. Control both synchronous and asynchronous motors, with and without a feedback device. A wide power range, different product variants and programming flexibility ensure an optimum solution for both single and multi-axis systems. It’s an IP20 drive module for controlling AC motors. It is to be installed into a cabinet by the customer. The ACSM1-04 can has an air-cooled heatsink, or is to be installed on a “cold plate” cooling element. The ACSM1-04 is available in several frame sizes depending on output power. All frame sizes use the same control unit (type JCU)
- 0.75 to 355 kW/1 to 450 hp
- Three-phase operation 230 to 500 V AC
- 3 to 635 A rms, power range 0.75 to 355 kW
- IP20 enclosure for cabinet installation (UL open)
- Suitable for single drive and multidrive (common DC) configurations
- Speed, torque and position control
- Controls synchronous and induction motors in open and closed loop
- Integrated safe torque-off (STO) as standard
- Innovative memory unit for easy drive management
Specifications
| Manufacturer: | ABB |
| Series: | ACSM1 |

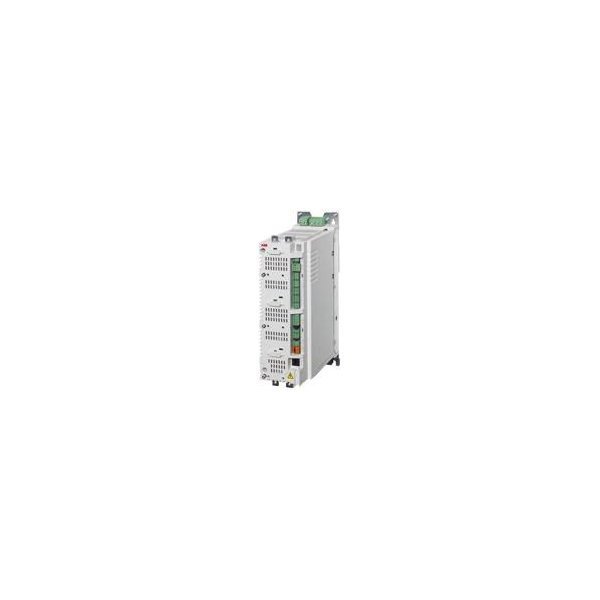

| Model: | ACSM1-04AS-09A5-4 |
| Application: | pumps / fans / lifts / cranes / general purpose |
| Capacity, kW: | 4 |
| Current, А: | 9.5 |
| Main power supply, V: | 380-480 |
| Phase: | 3 |
| Output frequency, Hz: | 0-500 |
| Enclosure: | IP 20 |
| Overload capacity, % per 1 min.: | 175 |
| Acceleration time, sec: | 0,1-1800 |
| Deceleration time, sec: | 0,1-1800 |
| EMC filter: | optional |
| Braking unit: | built-in, brake chopper |
| Analog input: | 3 |
| Digital input: | 6 |
| Analog output: | 2 |
| Digital output: | 3 |
| Relay output: | 1 |
| RS485 (Modbus RTU): | CANopen, Profibus, DeviceNet, Ethernet |
| PID: | PID – regulation |
| V/f control mode: | – |
| Vector control with feedback: | – |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10…..+55 |
| Storage temperature, °С: | -40…..+70 |
| Dimensions (W x H x D), mm: | 100x381x224 |
| Weight, kg: | 5 |
