ACS55 drive is a component that can be integrated easily into existing panels, replacing contactors and motor starters. Its compact size is ideal for new installations or whenever speed control of AC induction motors is needed. For users new to drives, its interface with DIP switches and trimmers is exceptionally intuitive. The ACS55 meets the requirements of new drive users, installers, machine builders and panel builders.
- Power range 0.18 to 2.2 kW/0.25 to 3 Hp
- IP20 enclosure (UL open)
- Scalar control
- For basic machinery applications
- Suitable for domestic networks as standard
- Parameter setting by switches or by PC software
- Built-in EMC filter for 1st environment
Specifications
| Manufacturer: | ABB |
| Series: | ACS55 |

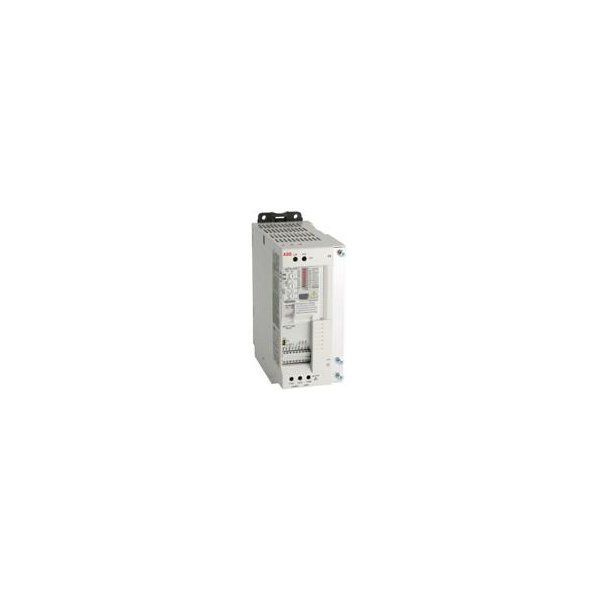

| Model: | ACS55-01E-02A2-2 |
| Application: | pumps / fans / general purpose |
| Capacity, kW: | 0.37 |
| Current, А: | 2.2 |
| Main power supply, V: | 200-240 |
| Phase: | 1 |
| Output frequency, Hz: | 0-120 |
| Enclosure: | IP 20 |
| Overload capacity, % per 1 min.: | 150 |
| Acceleration time, sec: | 0,1-1800 |
| Deceleration time, sec: | 0,1-1800 |
| EMC filter: | + |
| Braking unit: | – |
| Analog input: | 1 |
| Digital input: | 3 |
| Analog output: | – |
| Digital output: | – |
| Relay output: | 1 |
| RS485 (Modbus RTU): | – |
| PID: | – |
| V/f control mode: | – |
| Vector control with feedback: | – |
| Sensorless vector control: | + |
| Operation temperature, °С: | -20…..+50 |
| Storage temperature, °С: | -20…..+50 |
| Dimensions (W x H x D), mm: | 45x170x128 |
| Weight, kg: | 0,65 |
